Frame Introduction

Designed for serious trail enthusiasts, this carbon full suspension frame maximizes performance across 29-inch wheel platforms. The rear shock mechanism efficiently dissipates trail impacts, enhancing rider comfort and directional precision on technical descents and rough surfaces. Featuring modern Boost 148x12mm axle spacing and UDH drivetrain integration, the frame accommodates current component ecosystems without compromise. Carbon construction delivers optimal strength-to-weight ratios, while disc brake compatibility ensures consistent braking performance. The full suspension design enhances traction and control, making this frame an excellent foundation for riders seeking responsive, capable trail machines.

About  VPP All Mountain Bicycle Frame

Model:MEINIER-AM-117
Type: VPP All Mountain Bicycle Frame 29er;
Material:Carbon Fiber;
Frame Travel: 150mm;
Fit for Rear Shock: 210*55*24mm;
Fit for Seat Clamp: 34.9mm;
Fit for Seat Post: 31.6mm;
Fit for Disc Brake: 180mm;
Fit For Bottom Bracket: Screw-in BSA(73mm);
Rear Spacing Specification: Boost 148x12mmUDH;
Fit for Headset: Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm);
Fit for Tire: 29er.Max 2.4 Tire;

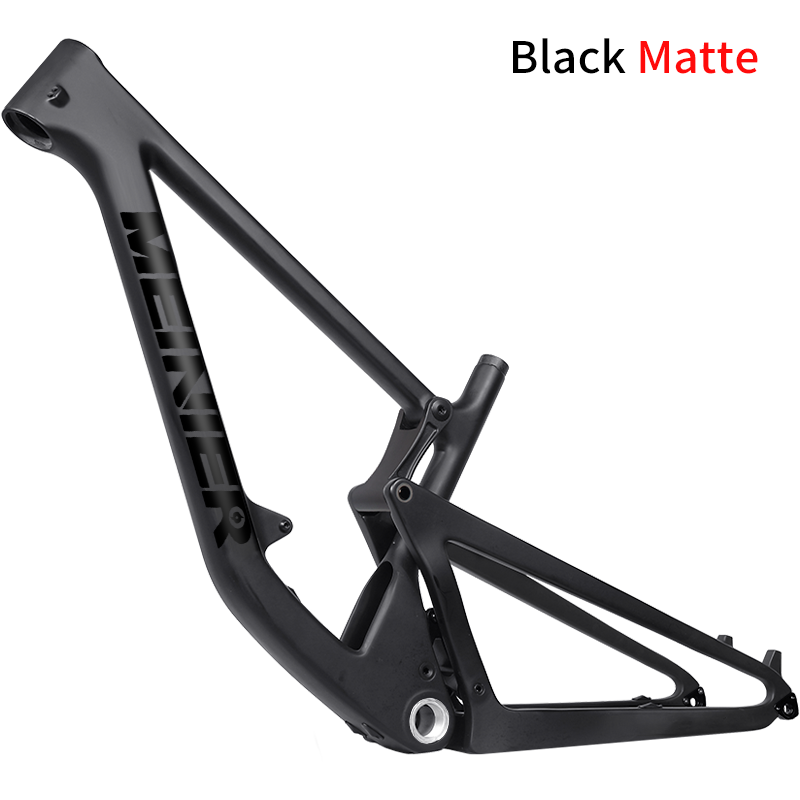

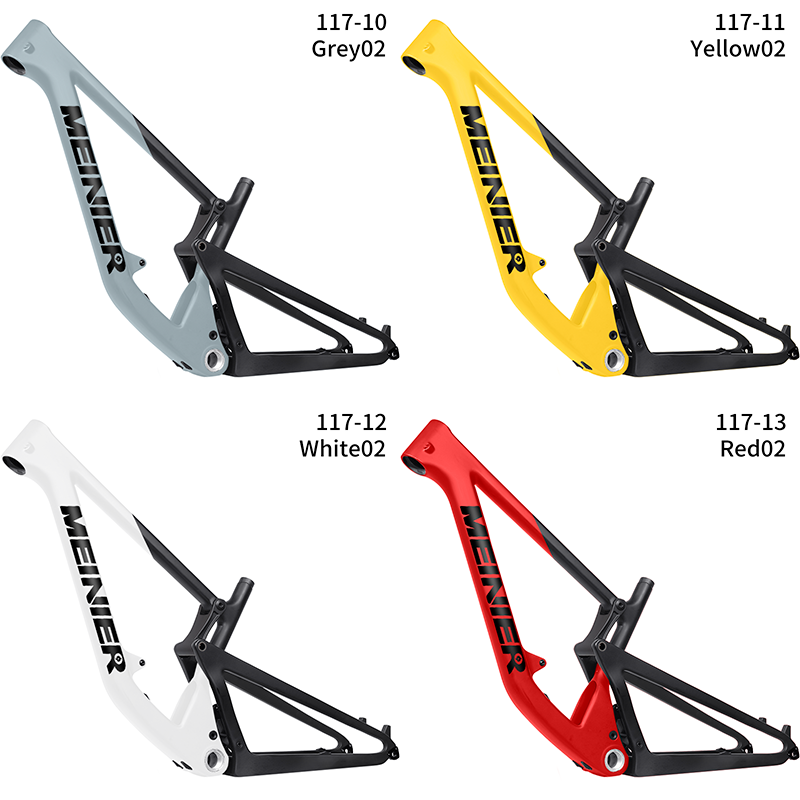

NOTE:This mtb bike frame is available in matte and glossy finishes, please leave a message when placing an order or contact us.

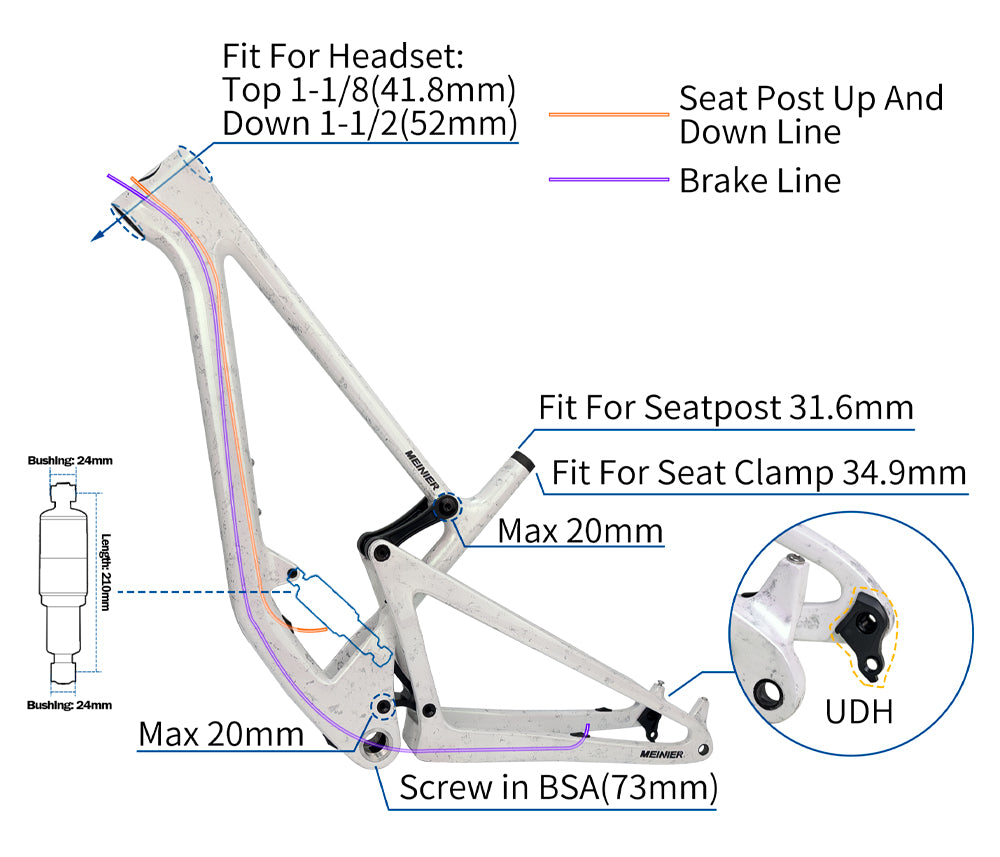

Frame Specification

Frame Features

This all-mountain carbon frame delivers versatile performance across diverse trail conditions with its sophisticated full suspension architecture. The VPP suspension platform provides balanced bump absorption and pedaling efficiency, while the extended travel geometry accommodates aggressive descents and technical terrain. Built from lightweight carbon fiber with internal cable routing for a clean aesthetic and protected drivetrain cables, the frame minimizes weight without compromising structural integrity. Modern Boost 148x12mm spacing and UDH compatibility ensure seamless integration with current component standards. The BSA bottom bracket provides reliable drivetrain interface, while integrated disc brake mounts deliver consistent stopping power. Designed for riders who demand a capable, responsive platform that excels in all-mountain riding scenarios, this frame combines comfort, control, and performance in a refined package.

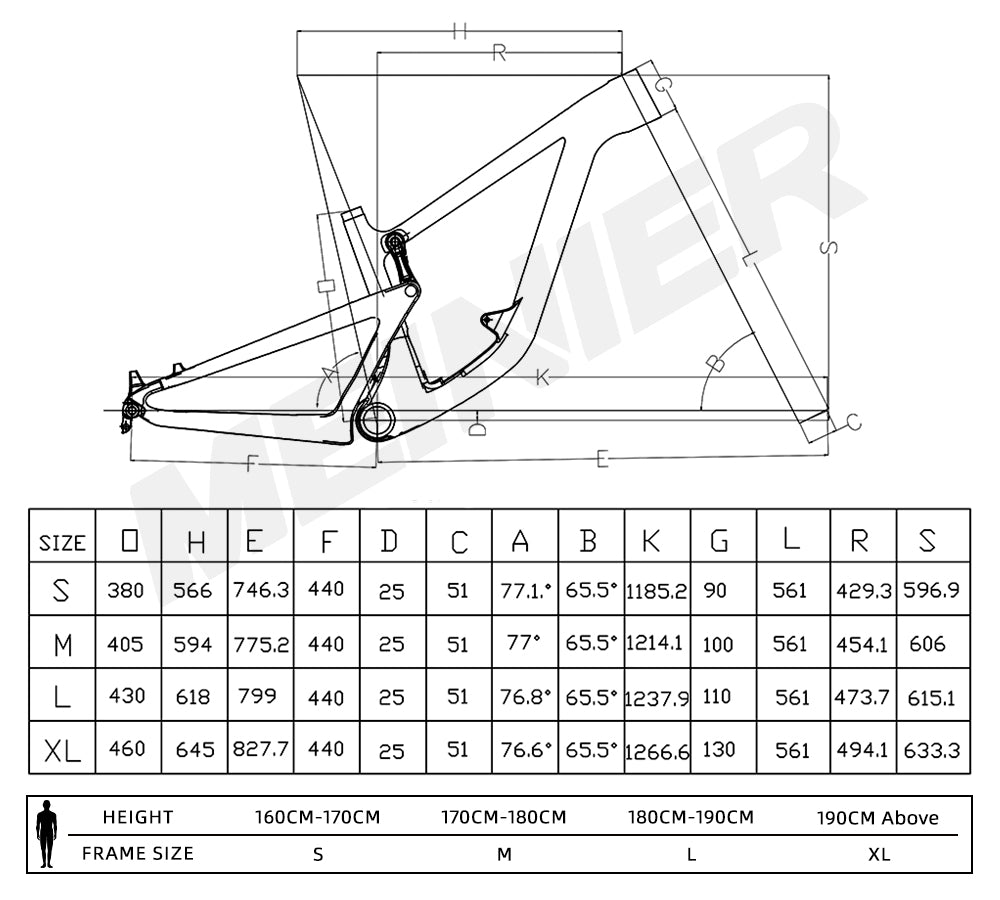

AM117 Geometry

This full suspension mtb carbon frame's geometric angles (such as head tube angle and seat tube angle) have been optimized to balance handling stability and pedaling efficiency.

This premium full suspension carbon frame combines modern engineering with practical versatility for serious mountain bikers. The UDH drivetrain interface delivers a refined aesthetic while the BSA bottom bracket ensures broad compatibility across Shimano, SRAM, and alternative groupsets. Engineered for 29-inch wheels with support for up to 2.4-inch tire clearance, the frame accommodates aggressive tread patterns and varied terrain demands. The 150mm travel suspension geometry optimizes impact absorption and trail responsiveness, while internal cable routing minimizes aerodynamic drag and protects drivetrain components. The 148x12mm Boost rear spacing enhances lateral stiffness and stability, translating to confident handling on technical sections. Compatible with 210x55x24mm rear shocks and 41.8-52mm headset standards, the frame integrates seamlessly with current component specifications. Integrated 180mm disc brake mounts provide powerful, modulated stopping control. This frame represents an excellent foundation for riders seeking a capable, refined platform that excels across diverse trail conditions.

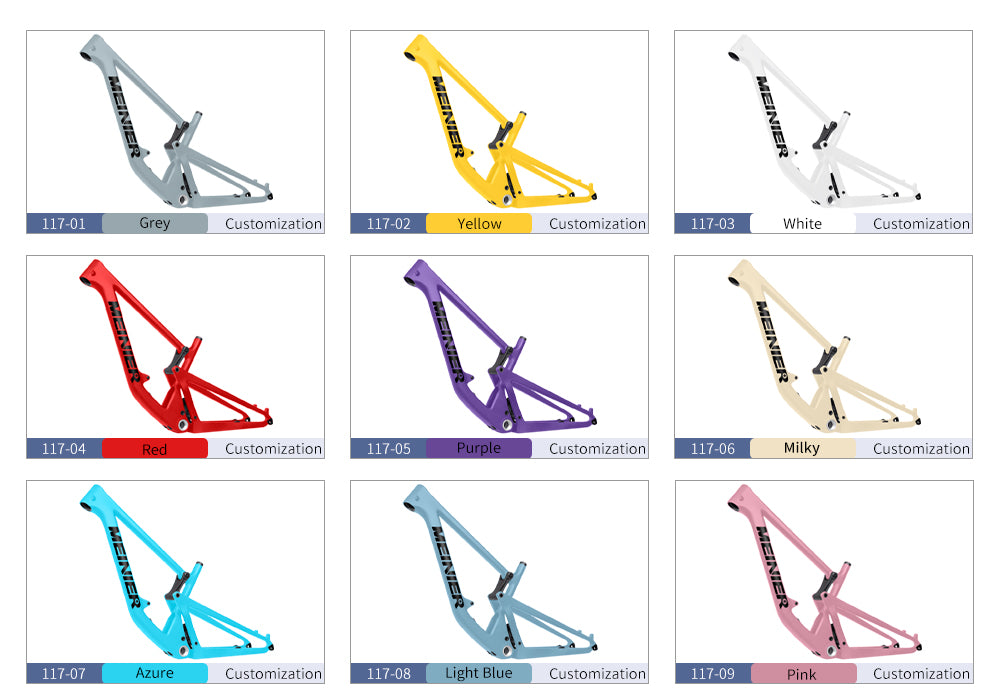

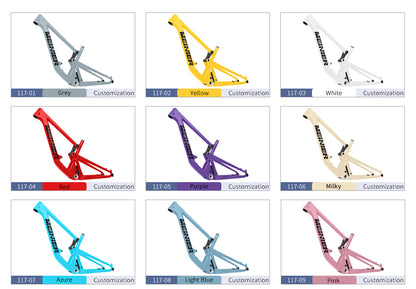

Custom Painting Services:

We are carbon fiber factory in China.we have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out.
You can contact us and we can customize the color and logo for you.

To meet the demands of off-road riding, this carbon MTB frame is designed for strength, durability, and rigidity to handle intense riding and challenging terrain.

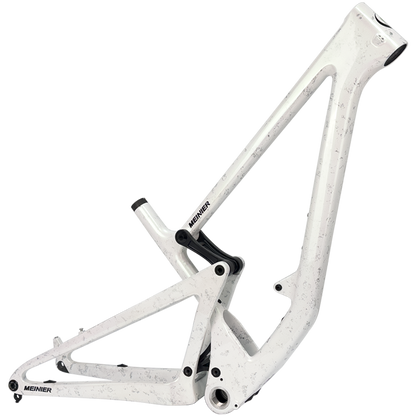

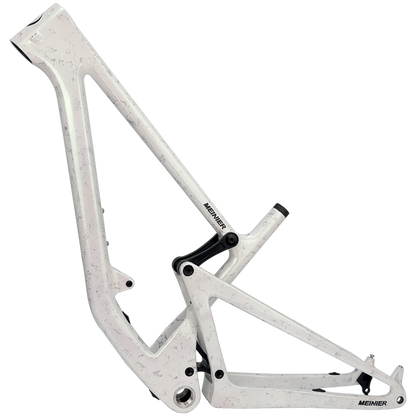

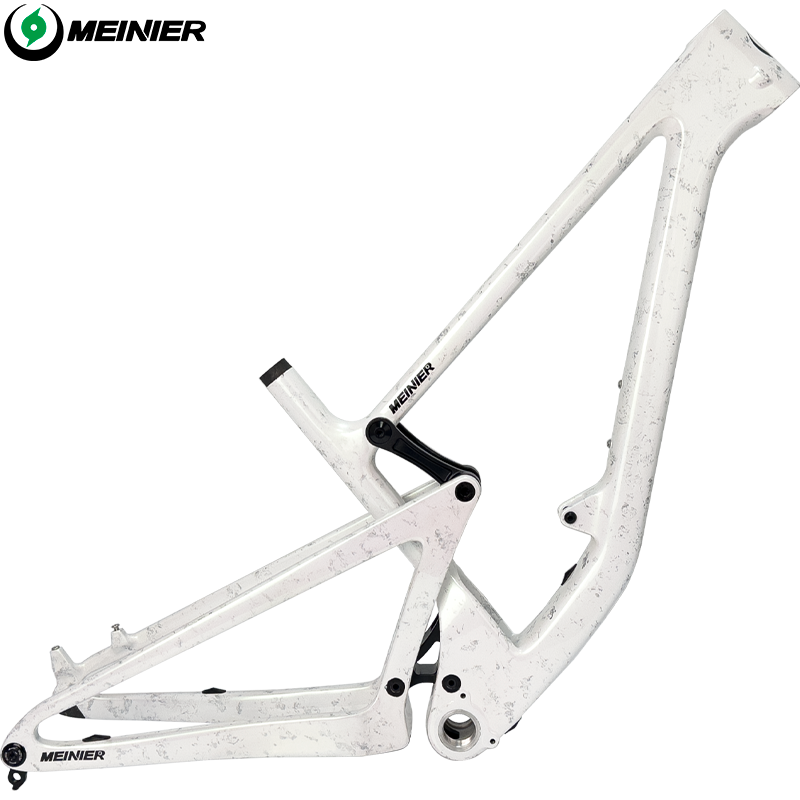

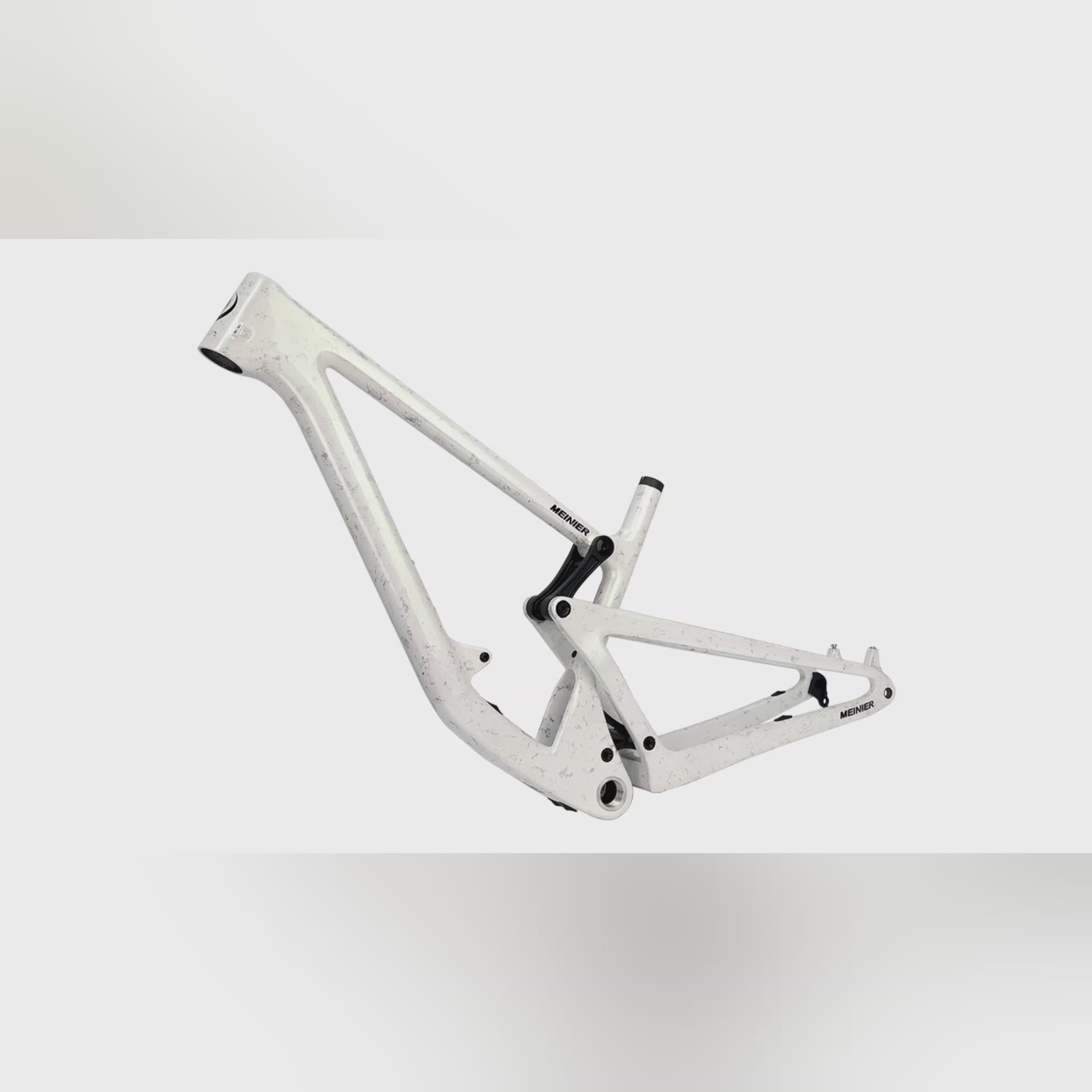

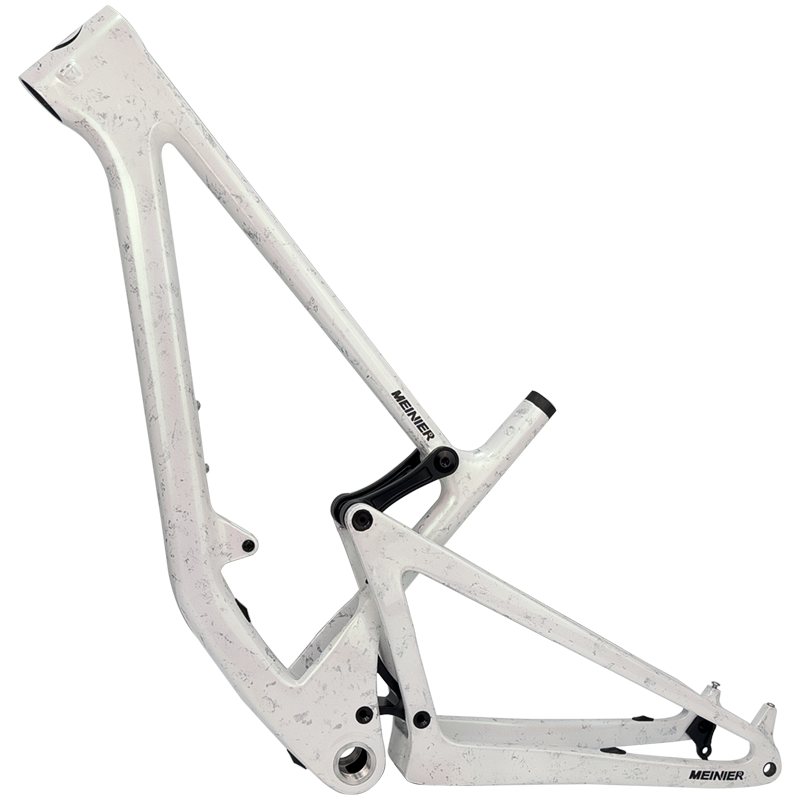

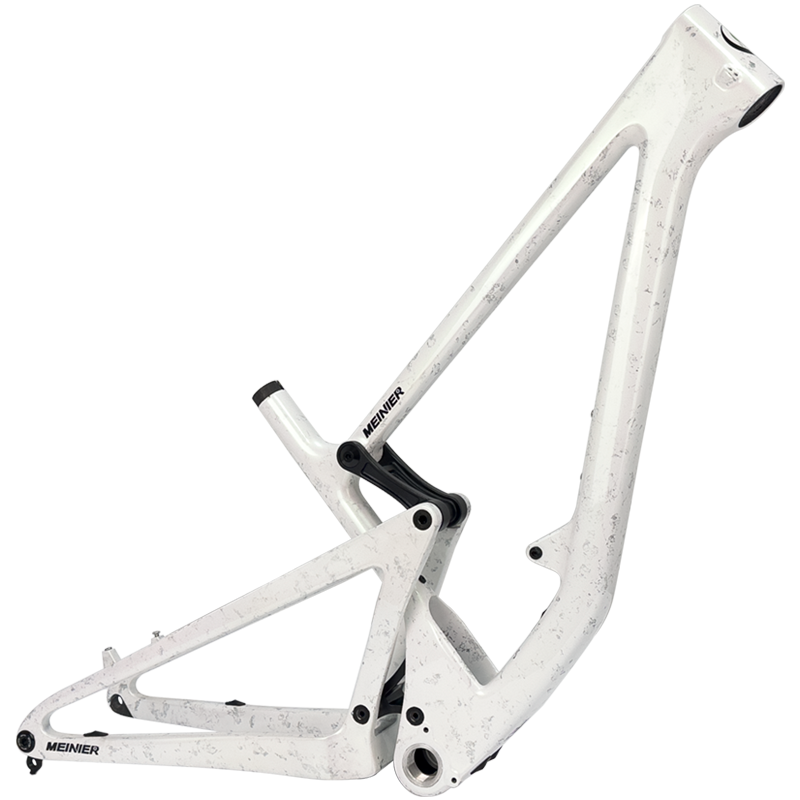

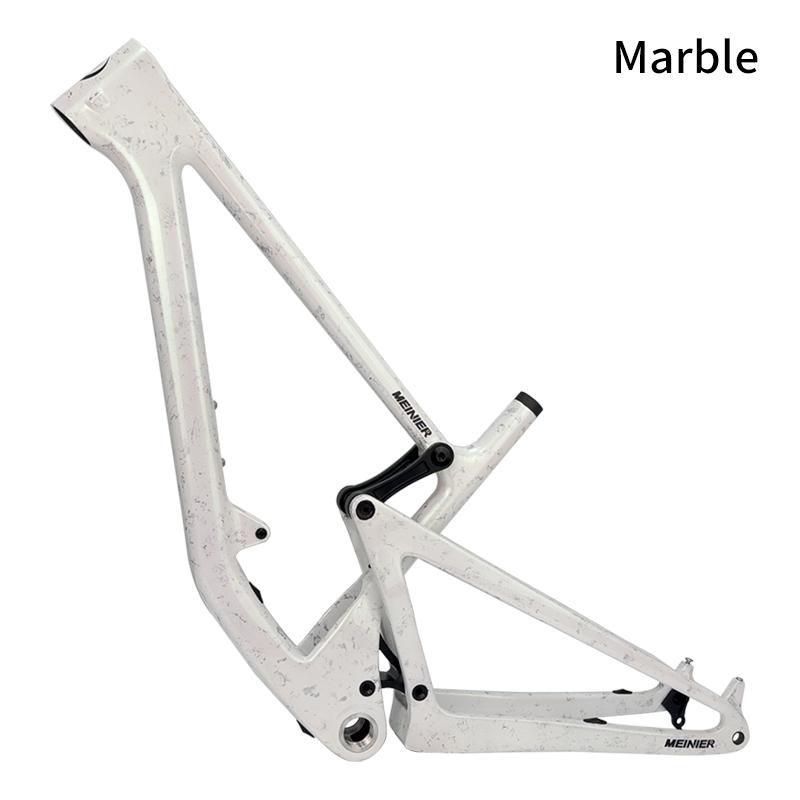

This MTB bike carbon frame features a marble pattern. Marble patterns are characterized by their natural beauty, rich and varied colors and textures, and a crystal-clear luster achieved through polishing. This natural texture and luster add a unique charm to any space, creating a different atmosphere.
