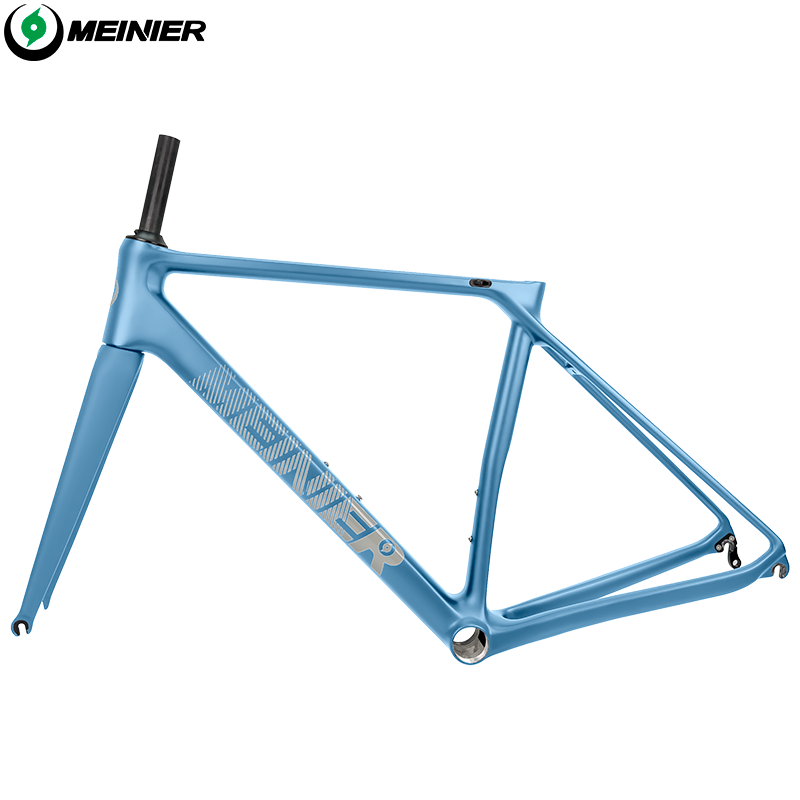

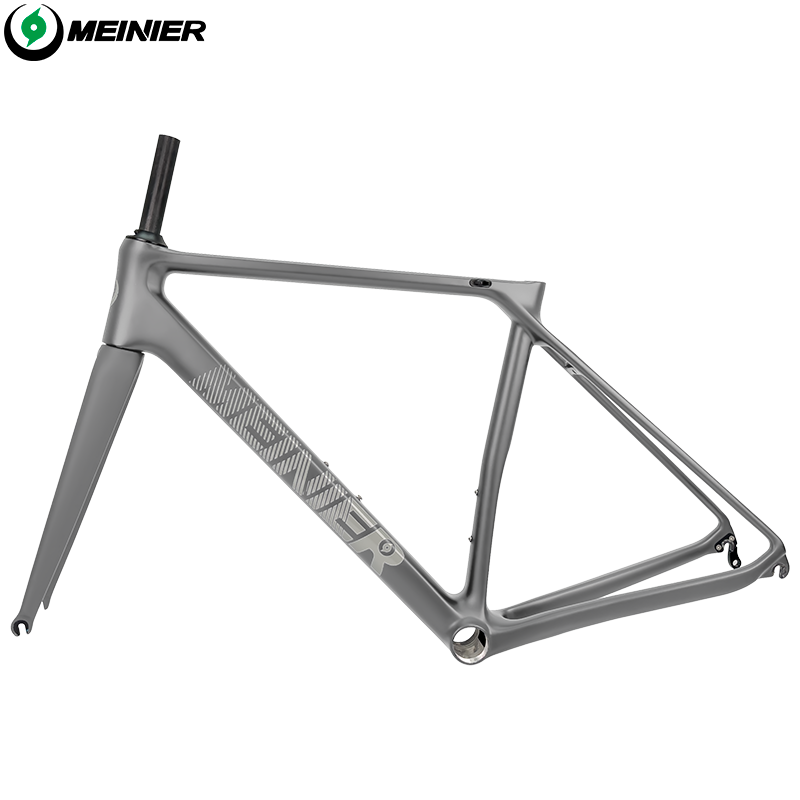

Frame Introduction

This carbon road frameset represents precision engineering optimized for 700C wheelset integration and V-brake systems. The geometry conforms to contemporary road cycling standards, delivering predictable handling characteristics and reliable braking interface performance. The carbon fiber construction provides superior stiffness-to-weight ratios, enabling efficient power transfer while minimizing rotational mass. The frame's responsive behavior under load supports both sustained efforts and dynamic acceleration demands. Rated for 28C tire clearance, it accommodates modern tire widths without compromising aerodynamic profile. Built to withstand the mechanical stresses of competitive cycling, this frameset serves as a proven platform for riders pursuing performance-driven objectives.

About Carbon Road Bike Frame

Type：Carbon Road Bike Frame
Size：XXS/XS/S/M/L
Fit for Tire：700C,Max 28C Tire
Brake：V Brake
Bottom Bracket：Screw in T47(46x86.5mm)
Fit for Wheel Hub：Fork(100x9mm),Frame(130x9mm)
Fit for Headset：Top 1-1/2(52mm),Down 1-1/2(52mm)

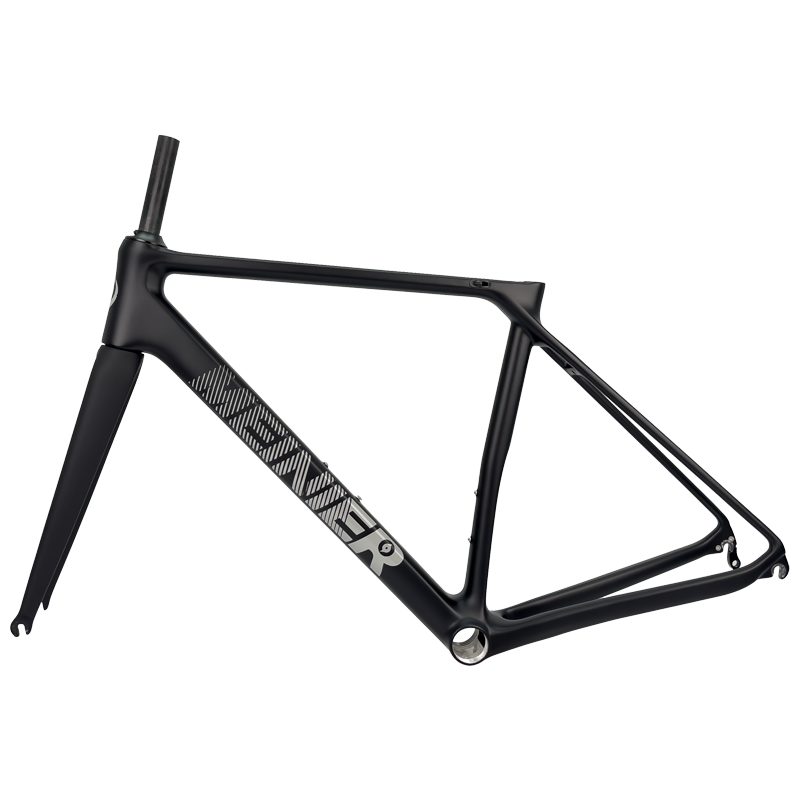

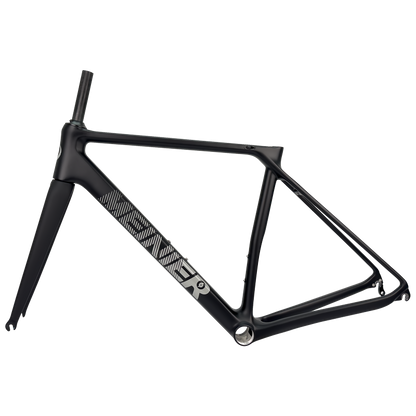

Color:Black

Frame  Specifications

Frame Geometry

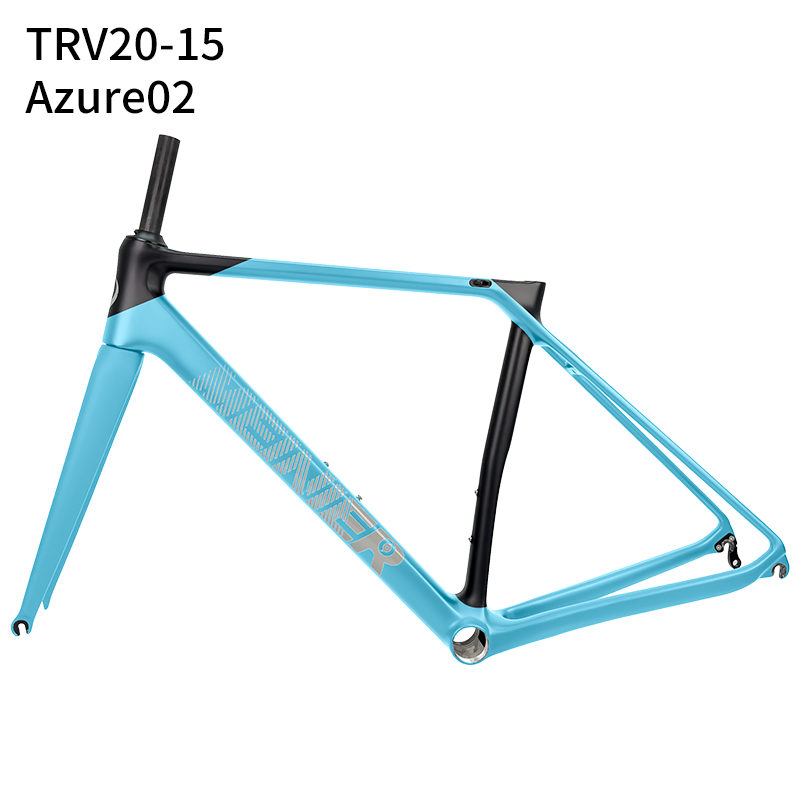

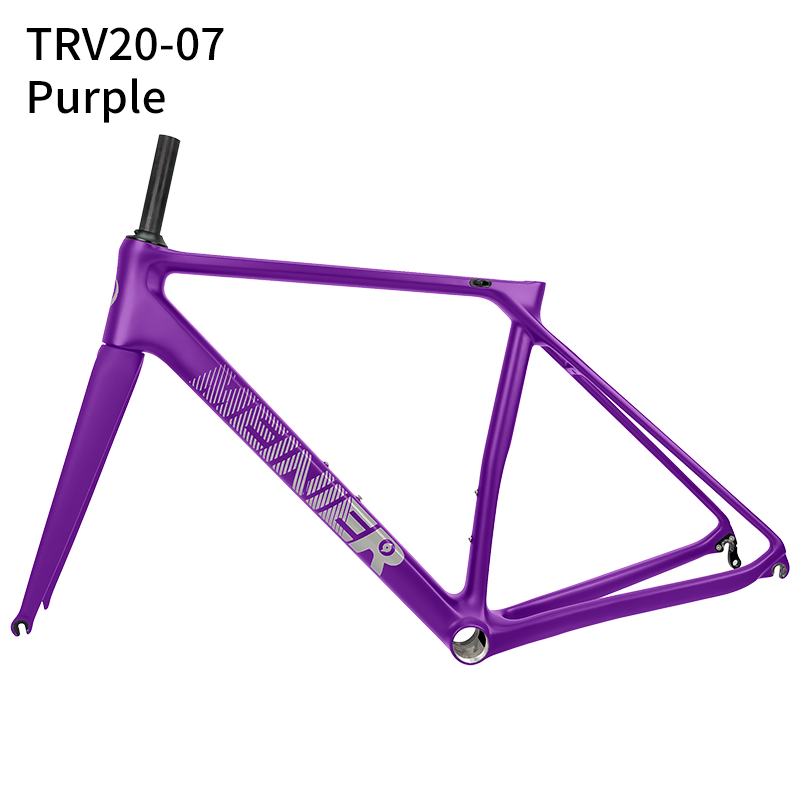

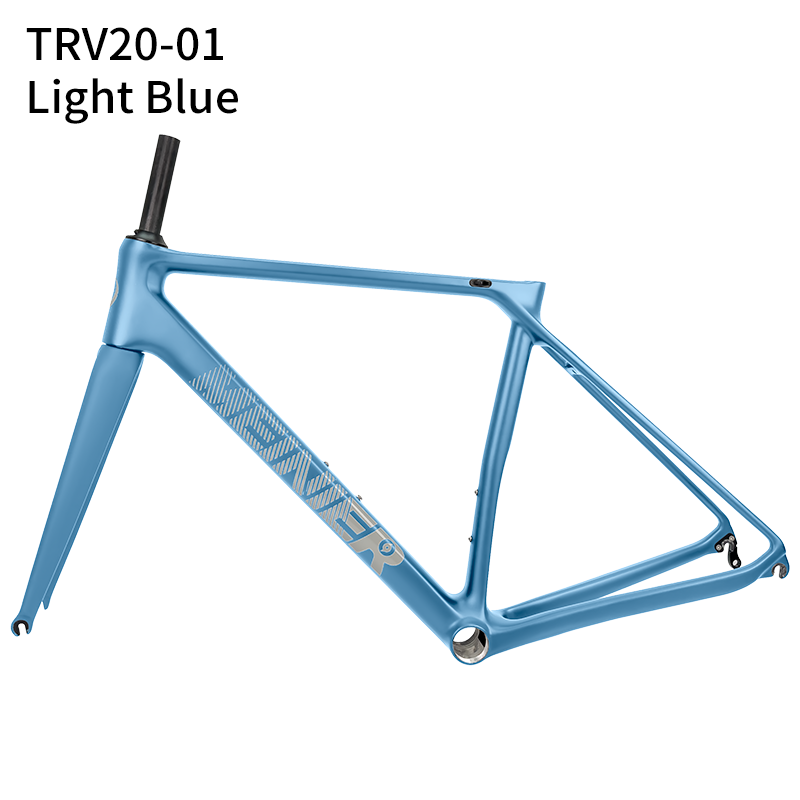

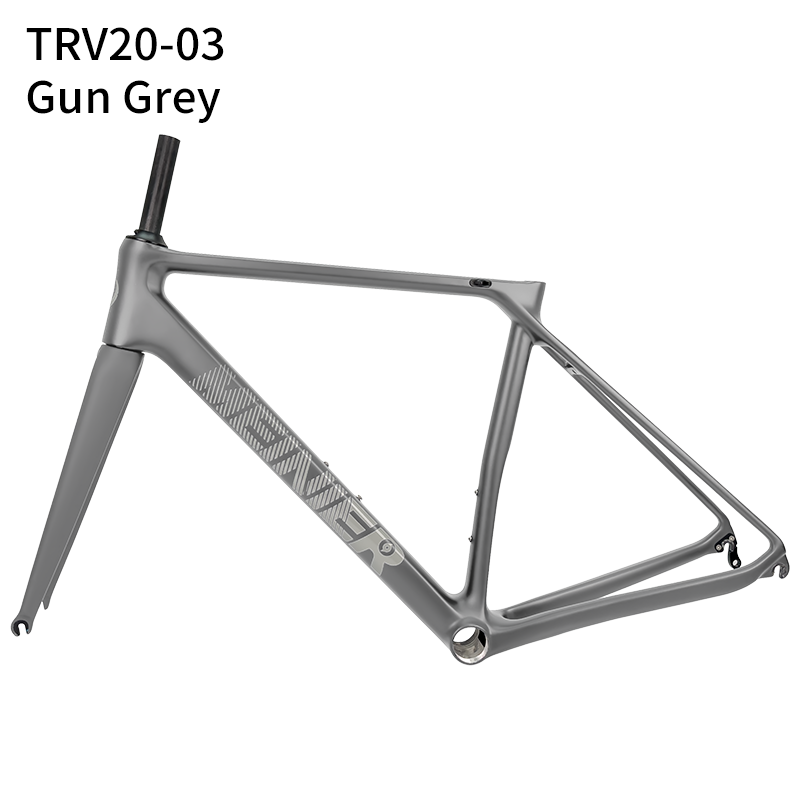

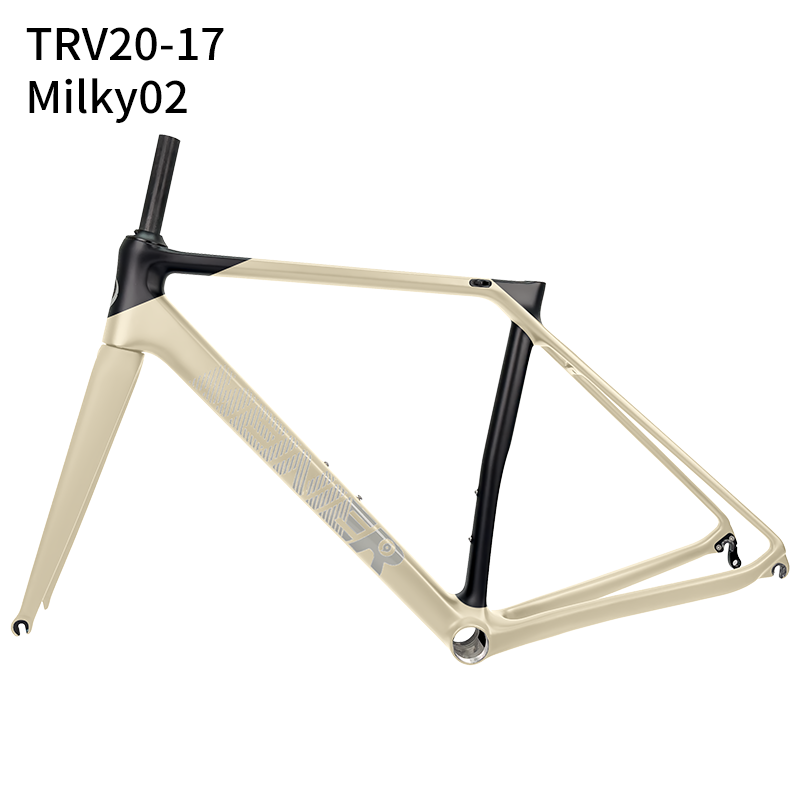

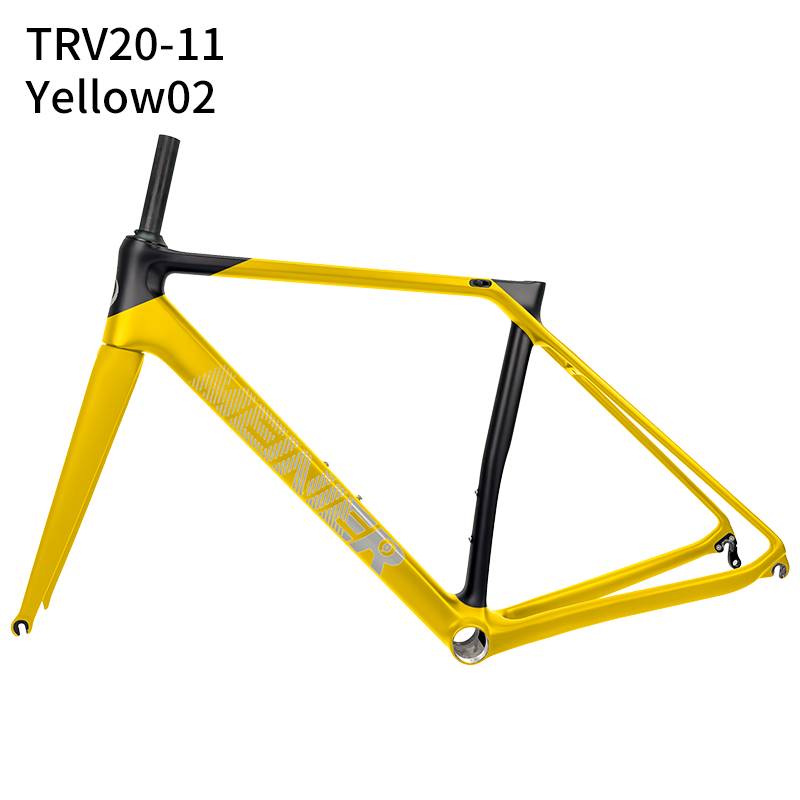

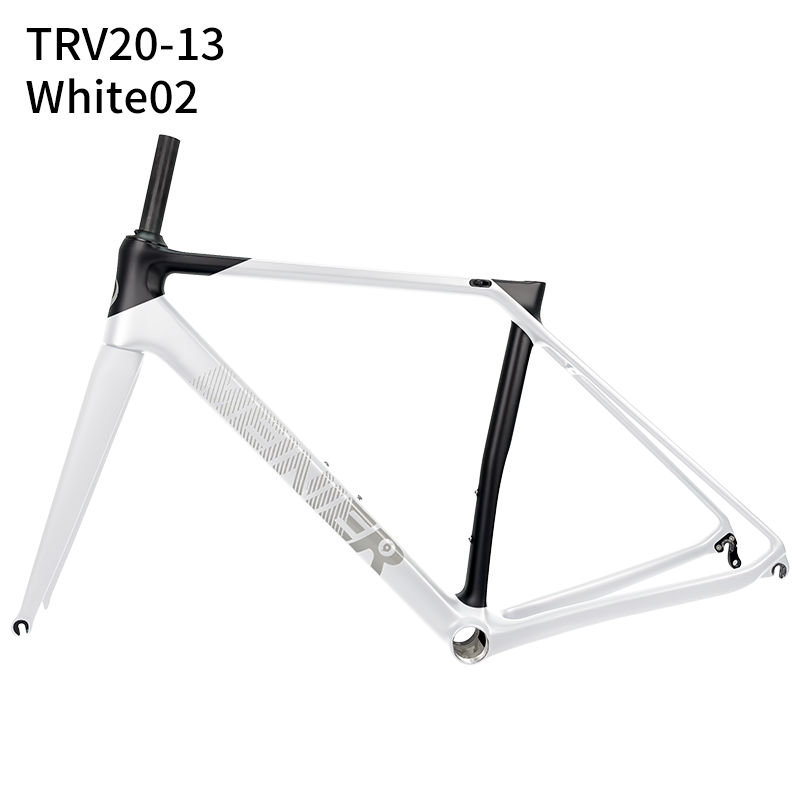

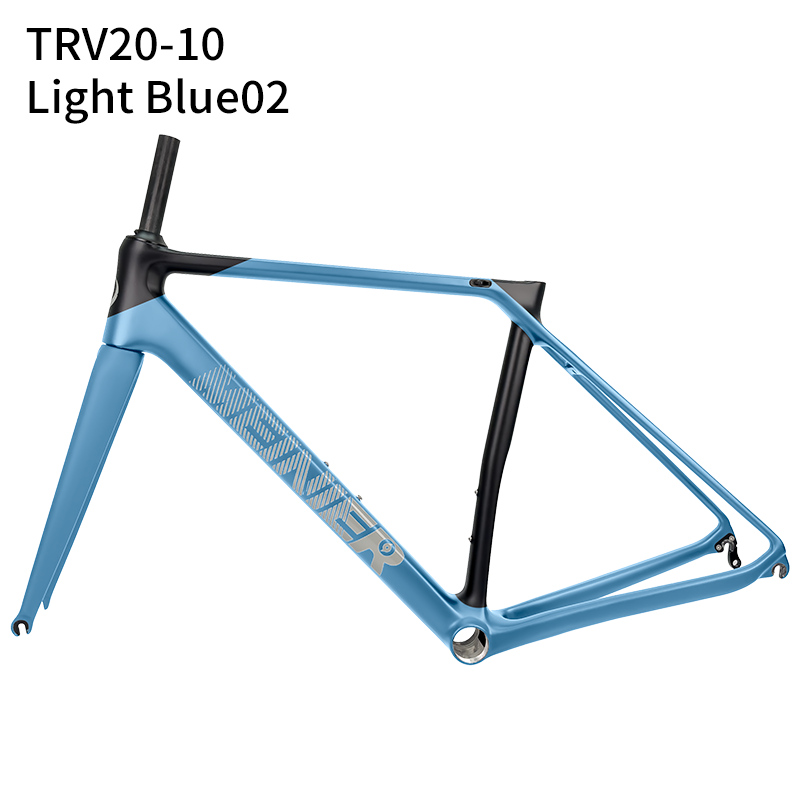

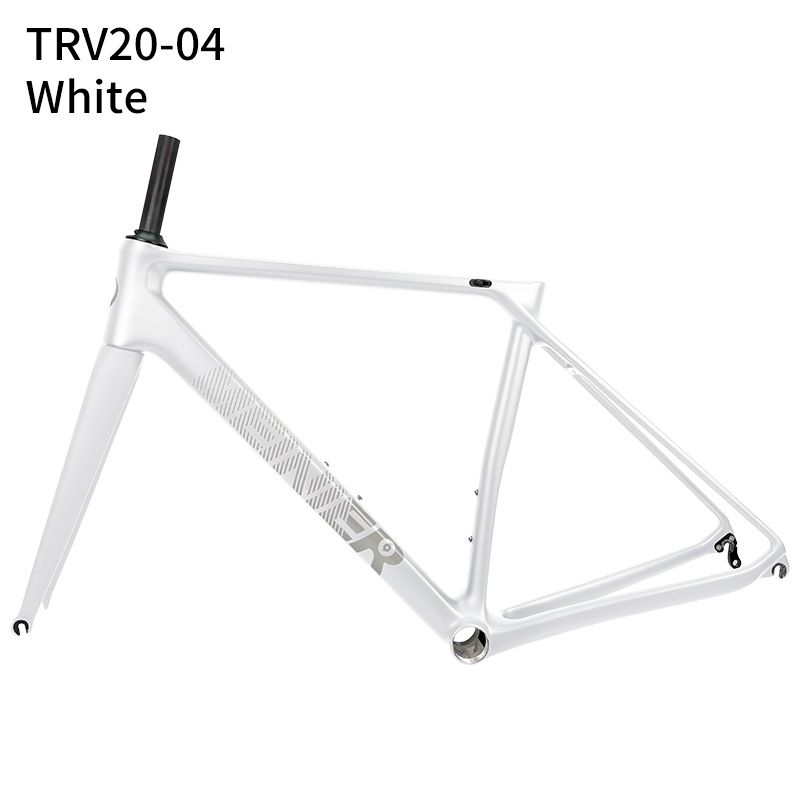

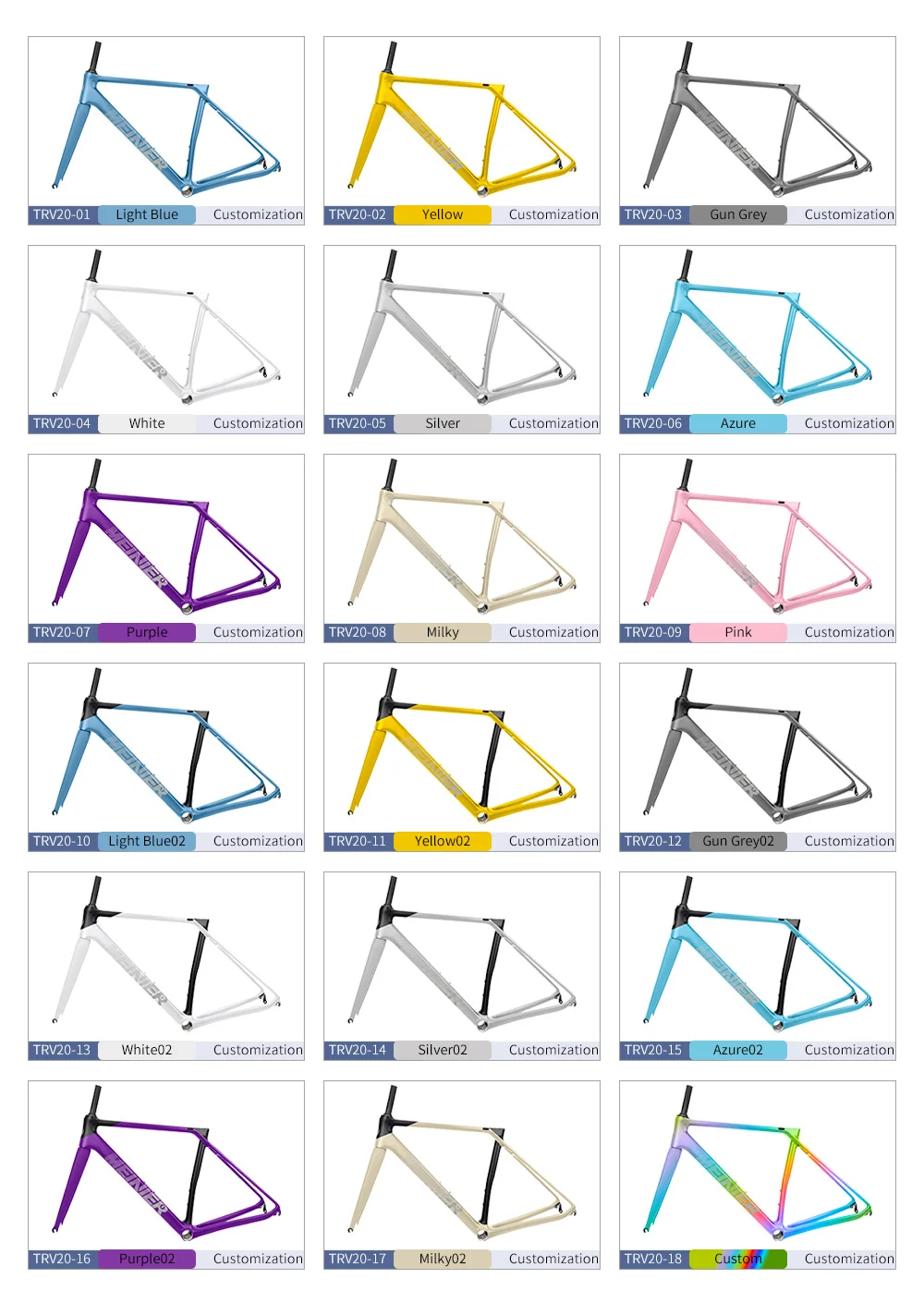

Custom Painting Services:

We are carbon fiber factory in China.we have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out.
You can contact us and we can customize the color and logo for you.



Built for discerning road cyclists, this carbon frameset integrates proven mechanical standards with modern versatility. The 700C platform accepts tires up to 28C, enabling confident handling on mixed surfaces while maintaining road-race efficiency. V-brake architecture delivers precise stopping control and straightforward maintenance—preferred by riders valuing mechanical reliability over complexity. The T47 threaded bottom bracket (46x86.5mm) provides secure, serviceable crank mounting without press-fit vulnerabilities. Hub spacing of 100x9mm (fork) and 130x9mm (frame) accommodates standard quick-release hubs, simplifying component sourcing. Dual 1-1/2" headset cups (52mm) ensure compatibility with contemporary fork designs. Finished in classic black, this frameset prioritizes durability, repairability, and performance for serious road cycling applications.

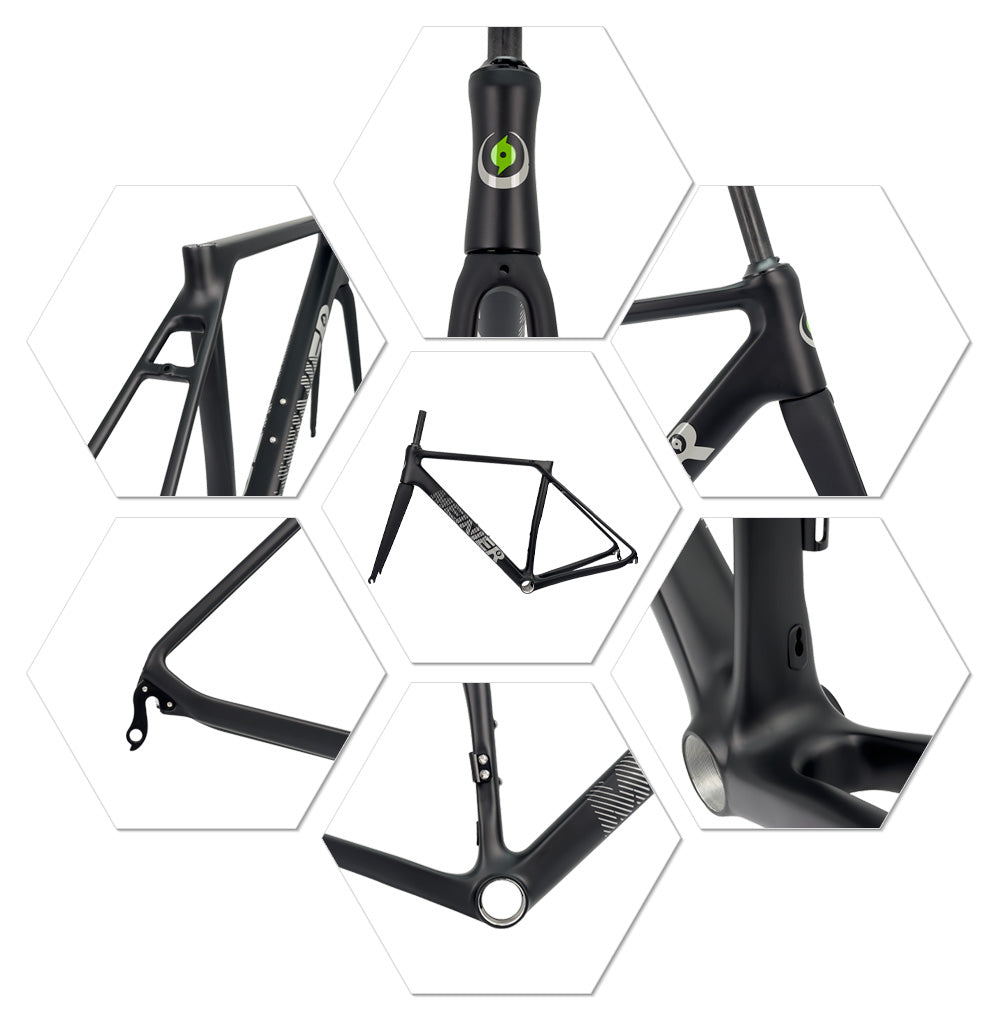

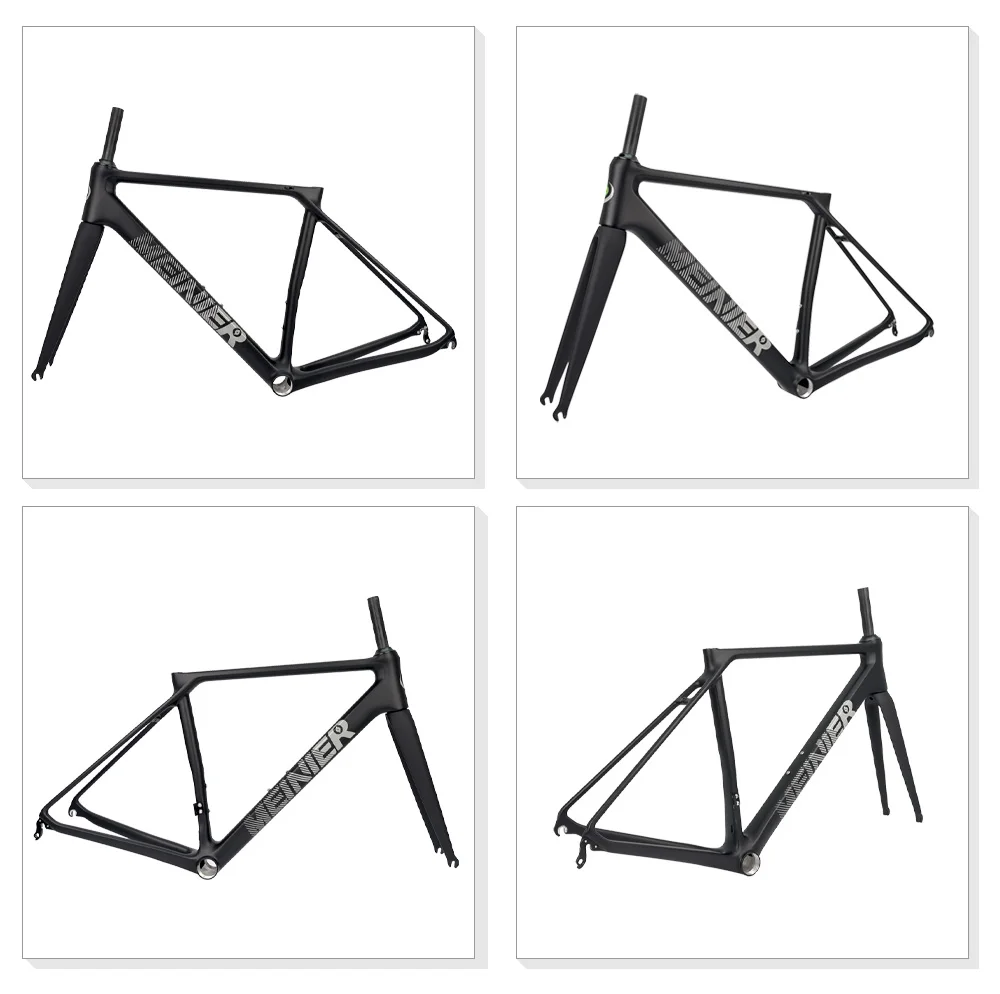

Show Details







This carbon fiber road bike frame's V-brake compatible design offers riders a wide range of modification potential. The standardized V-brake mounting interface allows for flexible selection of brake components from different brands and sizes to meet individual performance needs. Whether upgrading to high-end racing brakes or opting for a cost-effective mechanical system, the frame structure fully supports it. The 130x9mm rear axle spacing and 100x9mm front axle spacing follow industry standards, ensuring compatibility with various wheelsets and drivetrains. The T47 threaded bottom bracket and 1-1/2" head tube design also use universal specifications, allowing riders to freely customize core components such as cranks and headsets. This modular design philosophy provides long-term upgrade potential, making it suitable for professional riders seeking personalized configurations and continuous improvement.
