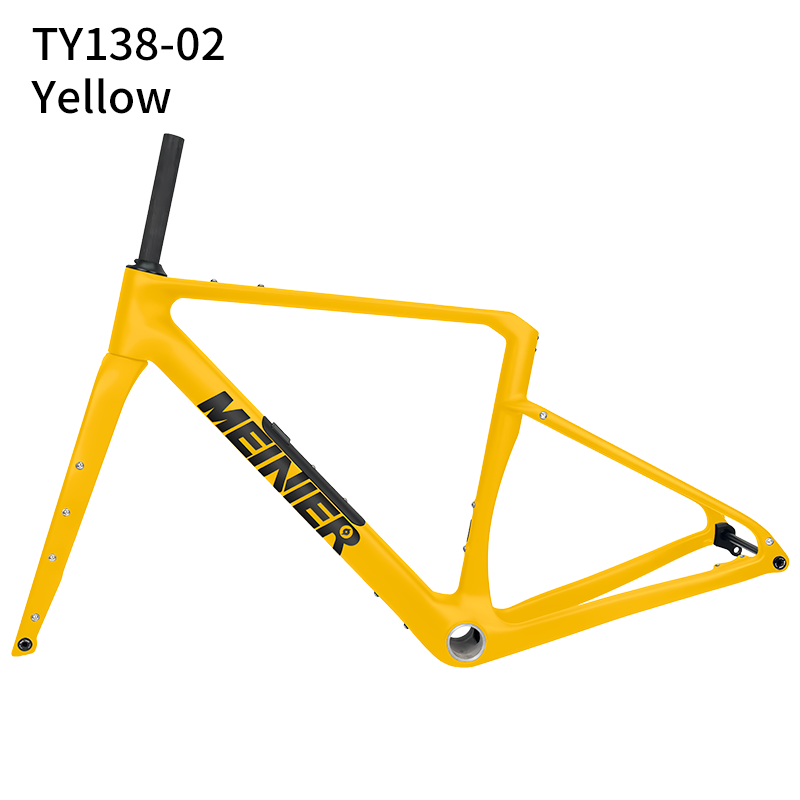

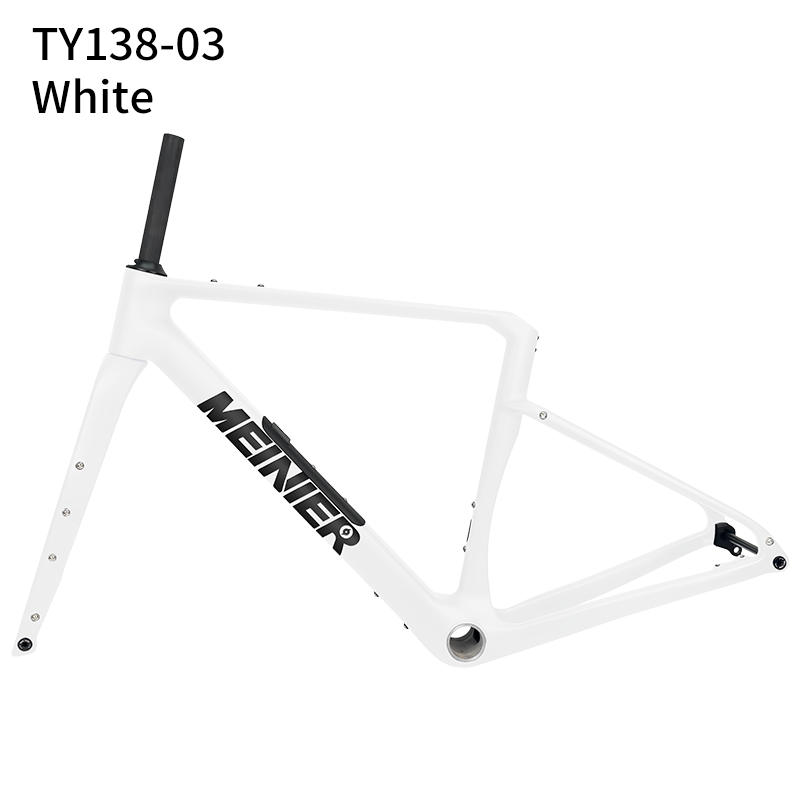

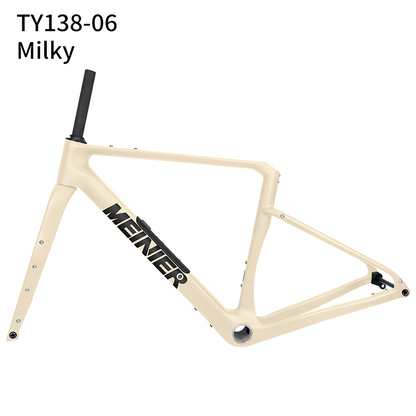

Frameset Introduction

This T1000 carbon gravel frame, equipped with a toolbox, UDH derailleur hook, T47 bottom bracket, and disc brakes, is designed for extreme gravel riding performance. Its precise specifications showcase the superior quality of a professional-grade frame. The T1000 carbon fiber construction balances lateral stiffness and longitudinal flexibility, optimizing power transmission while effectively absorbing road vibrations. Universal derailleur hook (UDH) compatibility ensures your drivetrain investment is future-proof and simplifies component upgrades. The T47 bottom bracket thread provides an industry-standard bearing interface, combining exceptional durability with easy maintainability. The integrated toolbox stores essential repair tools, eliminating storage space concerns on the frame during long rides. This frame blends advanced materials science and practical gravel riding engineering, built for riders who understand the need for performance while demanding technical specifications and proven reliability.

About Carbon Gravel Bike Frame

Model:MEINIER-TY138
Type: Carbon Gravel Bike Frame
Size:44/46/48/50/52
Material: T1000 Carbon Fibre
Bottom Bracket: T47(86.5mm)
Hanger:UDH hanger
SeatClamp: 31.8mm
Seat Post: 27.2mm
Headset: 52mm to 52mm
Brake System: Flat Mount Disc Brake(140mm)
Wheel Hub:100x12mm and 142x12mm Axle
Max Tire: 700Cx47C
Weight: 1557g±100g

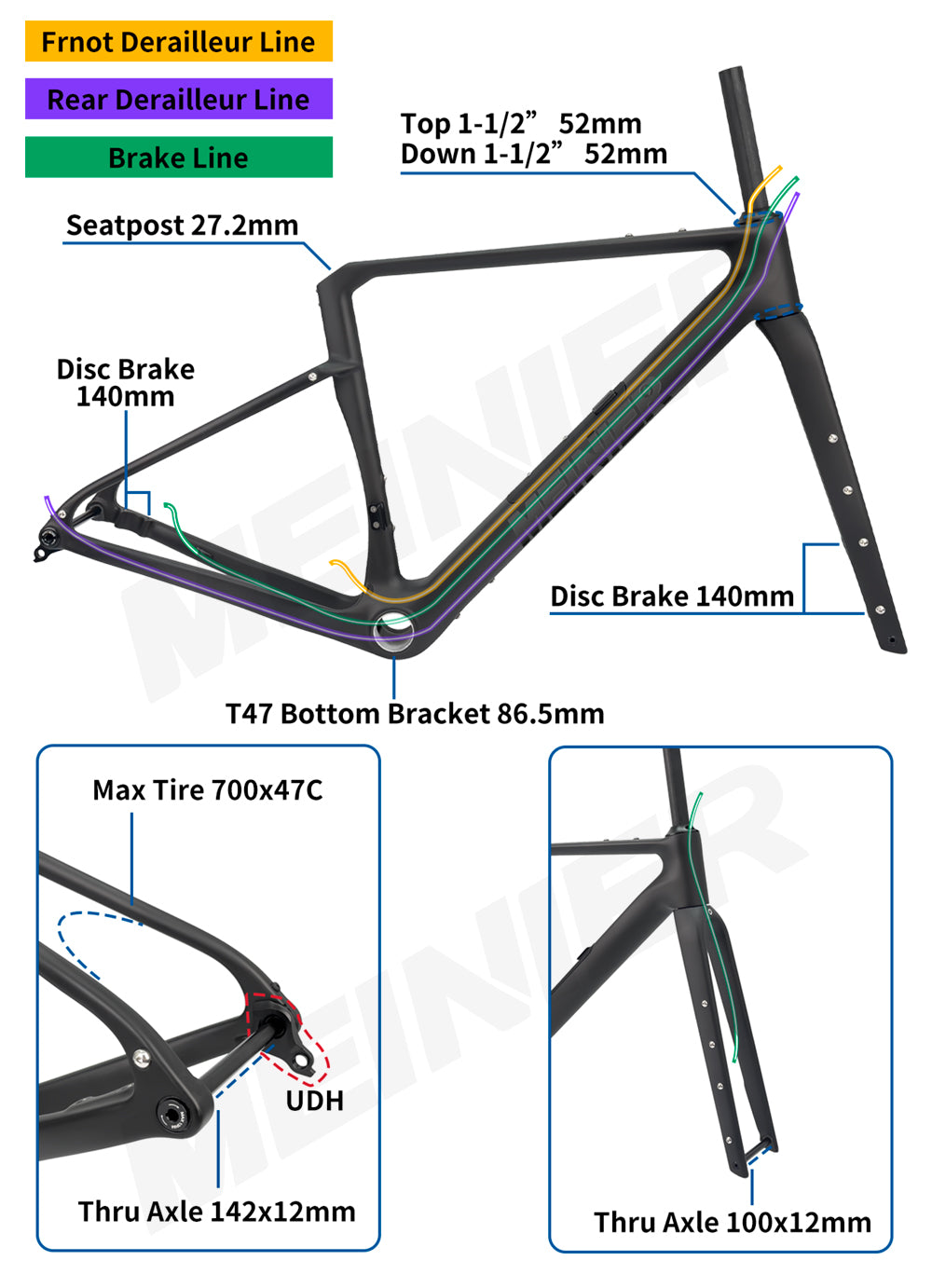

Frame specifications

Frame Geometry

Custom Painting Services:

We are carbon fiber factory in China.we have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out.
You can contact us and we can customize the color and logo for you.

Main Features

Tool Box

Gravel frameset with Integrated Tool Box This frameset represents thoughtful engineering that prioritizes both performance and practicality. The built-in tool box integrates seamlessly into the frame structure, offering dedicated storage for repair essentials without compromising aesthetics or adding external bulk. Constructed with precision tolerances, the frameset supports current drivetrain standards and modern braking systems through standardized mounting points. The material selection balances strength with efficiency, delivering responsive ride characteristics across diverse terrain and riding conditions. The embedded storage solution keeps critical tools and spares protected from the elements while maintaining immediate accessibility during rides. Geometry developed for versatile performance accommodates varied riding styles—from spirited single-track exploration to loaded multi-day expeditions. Designed for discerning riders who recognize that superior framesets integrate technical excellence with intelligent solutions that enhance capability and self-reliance in the field.

UDH Hanger

Gravel Bike Frame with UDH Hanger Built around the Universal Derailleur Hanger (UDH) standard, this gravel frame eliminates proprietary drivetrain constraints and establishes compatibility across current and future groupset technologies. The standardized UDH interface provides consistent mounting geometry that ensures precise derailleur positioning and reliable shifting performance in demanding gravel conditions. The frame construction prioritizes durability through variable terrain while maintaining the lightweight efficiency required for extended riding. Geometry optimized for gravel applications delivers stable handling under load, responsive cornering characteristics, and confident braking modulation across mixed surfaces. The UDH specification simplifies component selection and field maintenance, reducing complexity during remote expeditions where mechanical self-sufficiency becomes critical. Premium material selection and precision engineering ensure the frame withstands aggressive riding demands while supporting both minimalist racing setups and fully-loaded touring configurations. Engineered for discerning riders who demand frames that combine gravel-specific performance with the technical standardization that defines contemporary frame design and long-term value retention.

Bottom Bracket T47

T47 Bottom Bracket System The T47 bottom bracket standard establishes a modern threading specification that prioritizes durability, serviceability, and long-term component compatibility. T47 geometry features robust thread engagement that resists stripping during repeated installation and removal cycles—essential for riders who maintain their own equipment and demand mechanical reliability. The standardized T47 interface ensures compatibility with contemporary crankset designs and emerging drivetrain architectures, eliminating the obsolescence risk inherent in proprietary bottom bracket systems. Precision threading tolerances enable accurate bearing preload adjustment and straightforward bearing replacement without requiring specialized equipment or frame modifications. The T47 specification accommodates multiple bearing cartridge options and installation methodologies, providing flexibility to match your specific maintenance approach and component preferences. Superior thread durability reduces frame damage risk during bearing service, extending frame lifespan and protecting your investment across multiple drivetrain generations. Engineered for discerning riders who understand that bottom bracket performance depends on both bearing quality and frame threading precision—the T47 standard delivers the technical foundation that distinguishes frames built for long-term reliability and field-proven durability.
