Frame Introduction

This high-performance carbon hardtail frameset delivers professional-grade engineering tailored for young riders pursuing competitive trail riding. The 24-inch hardtail platform provides optimal proportions for developing cyclists, balancing agility with momentum conservation on technical descents and sustained climbs. Advanced carbon fiber construction employs directional fiber layup to achieve superior torsional rigidity while maintaining strategic vertical compliance—essential for maintaining wheel contact and traction on rough terrain. Fully routed internal cable management protects hydraulic brake lines and derailleur cables from mud, water, and abrasion, extending component lifespan and maintaining consistent braking and shifting performance. The T47 bottom bracket system features sealed cartridge bearings with precision-machined aluminum cups, eliminating play and ensuring efficient power transfer with minimal friction losses. Dual rear axle compatibility—supporting both 135x9mm and 142x12mm hub standards—provides component flexibility and future-proofs your build against evolving wheel technology. Engineered with exacting tolerances and validated through rigorous testing, this frame serves as the structural foundation for a capable hardtail system ready for progressive trail demands and competitive riding environments.

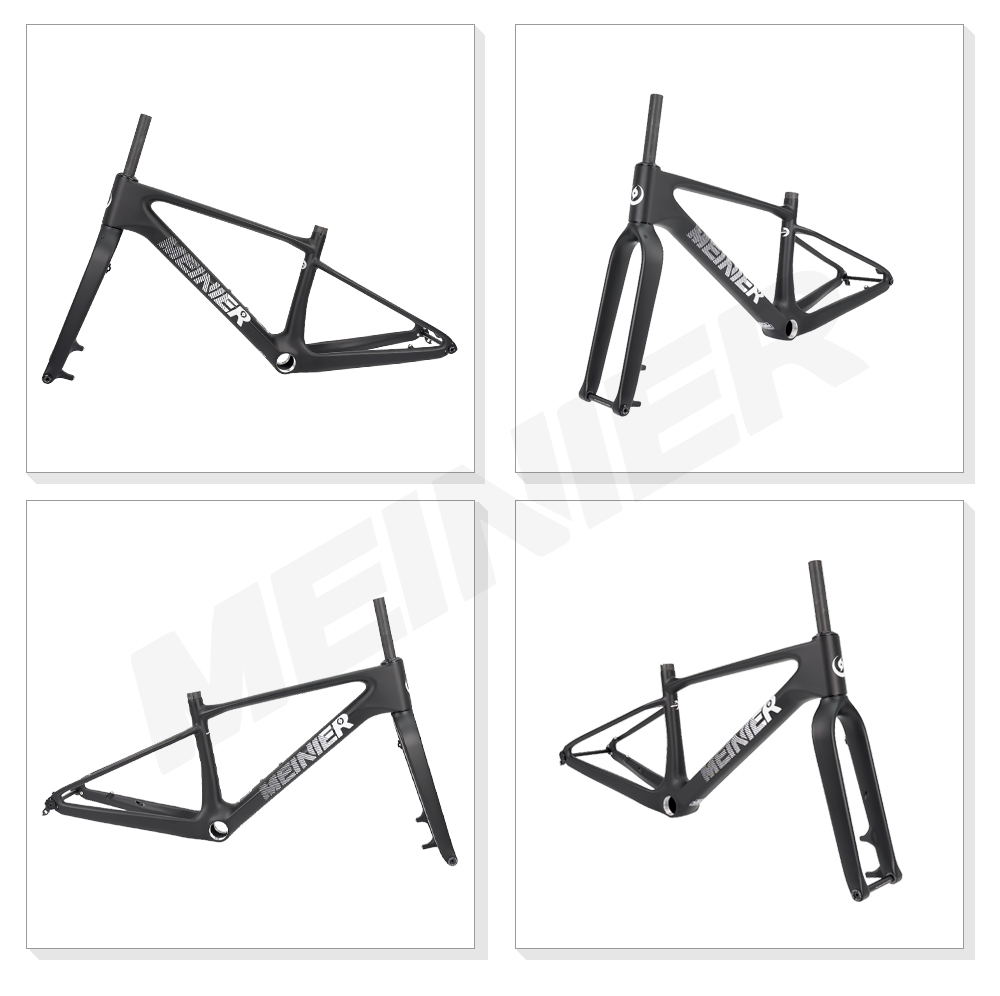

About 24er Carbon MTB Frame
Type: 24er Carbon MTB Frame;
Material: Carbon Fiber;
Size:24er(130-150cm)
Max load: 150kg;
Fit for Clamp:34.9mm
Fit for Hub: 135x9mm and 142x12mm;
Fit for Seat Post: 31.6mm;
Fit for Tire: 24er.Max 2.6Tire;
Fit for Disc Brake: 160mm;
Fit For Bottom Bracket: Screw-inT47(73mm)
Fit for Headset: Top 1-1/2(52mm) Down 1-1/2(52mm)

Frame Specifications

Frame Geometry

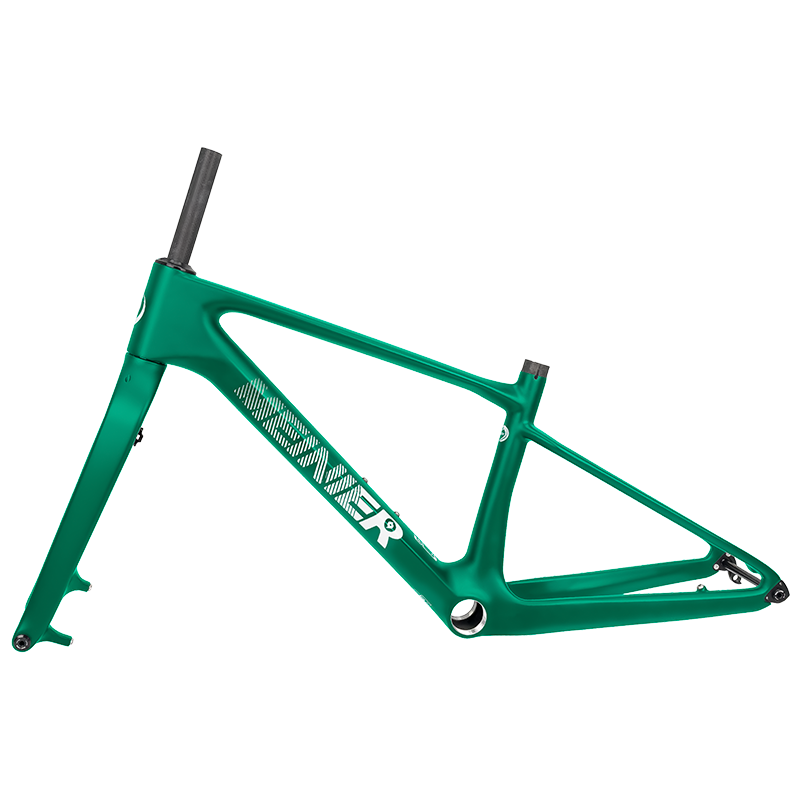

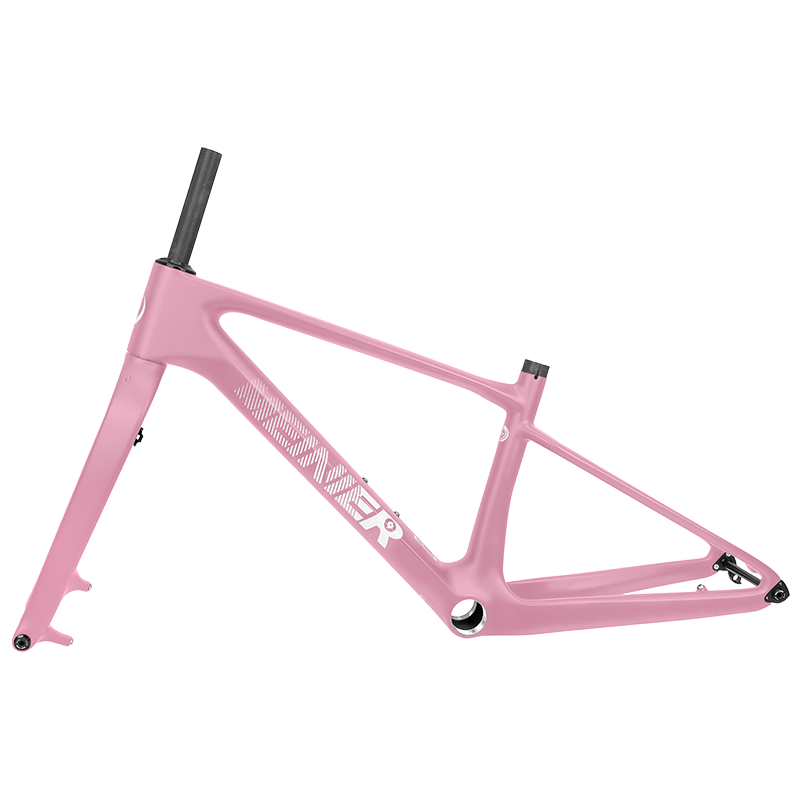

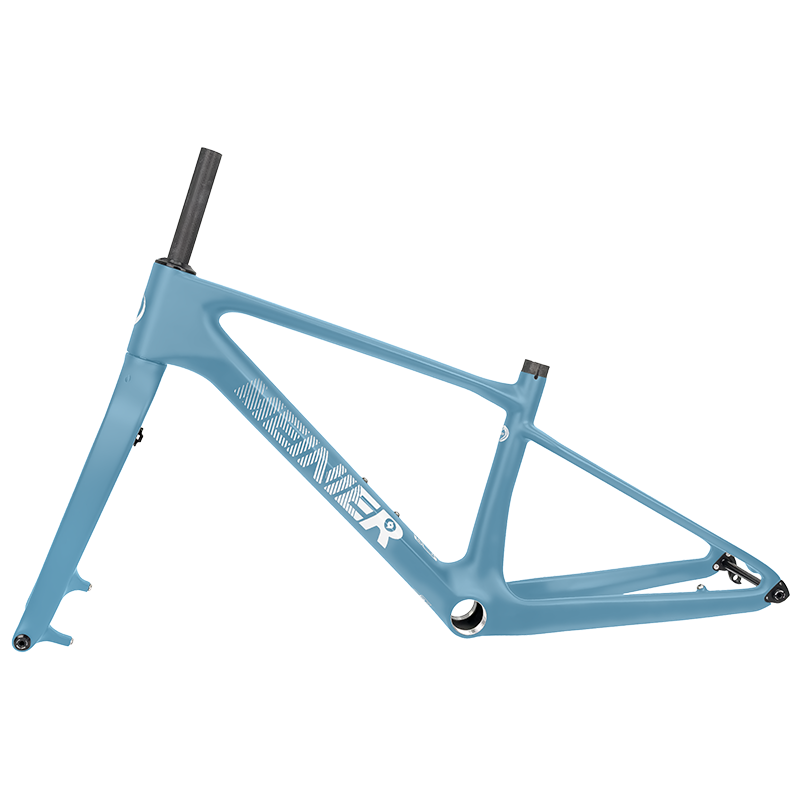

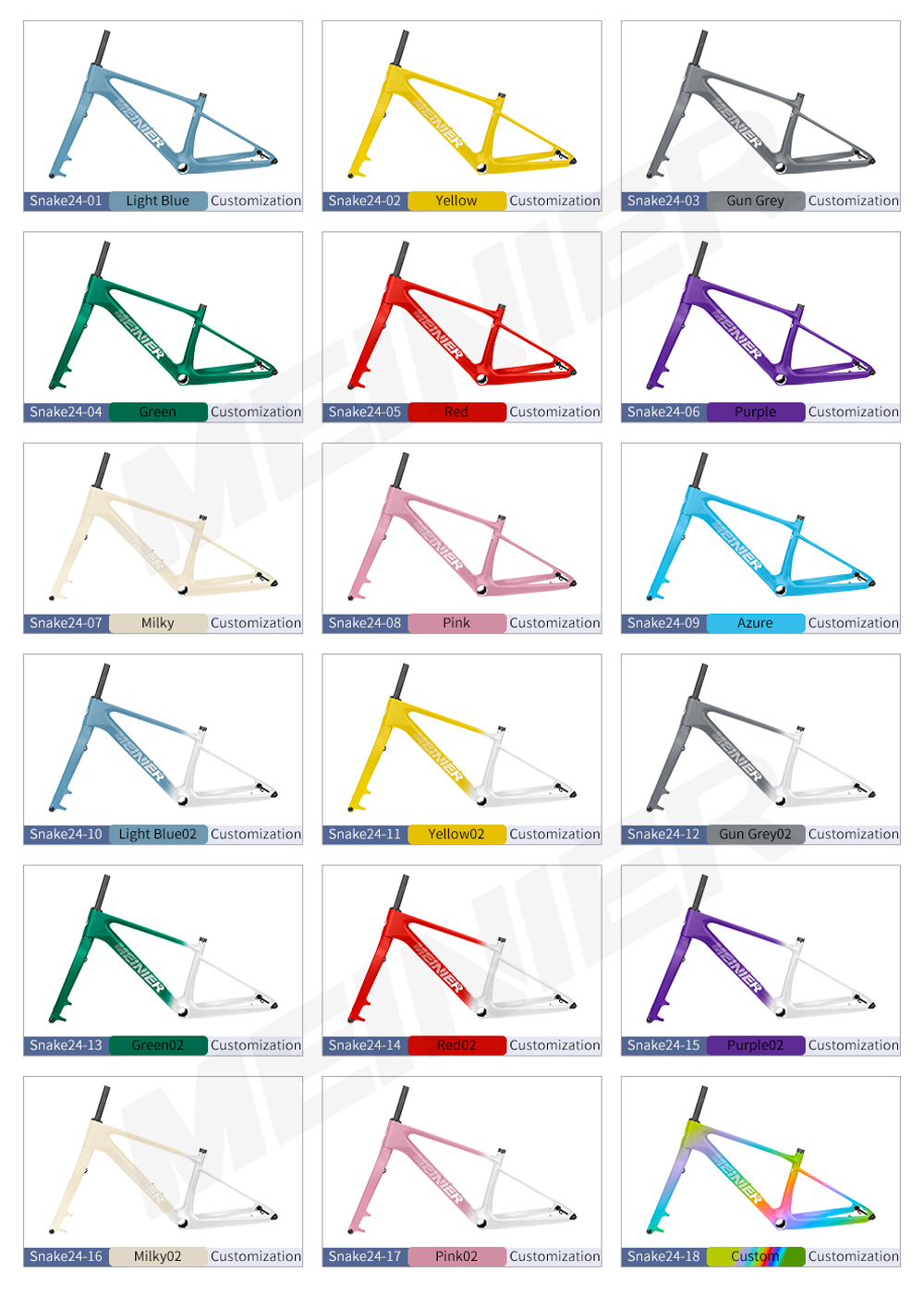

Custom Painting Services:

We are carbon fiber factory in China.we have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out.
You can contact us and we can customize the color and logo for you.

The 24er mtb hardtail frameset geometry provides optimal leverage and responsiveness across varied terrain, while the carbon monocoque construction delivers superior stiffness without excess weight. Full internal cable routing minimizes friction losses and protects drivetrain components from environmental exposure. The mtb frame's dual-standard rear axle compatibility—accepting both 135x9mm and 142x12mm spacing—accommodates modern wheel standards and simplifies component sourcing.

The T47 bottom bracket system features sealed bearings with zero-backlash design, ensuring crisp drivetrain engagement during sustained climbs and explosive acceleration without play or flex. The 52mm-to-52mm headset geometry establishes stable steering geometry while fully internal cable routing protects brake and shifter components from mud, water, and environmental contamination—preserving mechanical reliability and extending service intervals. Constructed from high-performance carbon fiber using advanced lamination techniques, the frame achieves lateral stiffness for responsive handling while maintaining vertical compliance that enhances traction and control on technical descents.

Designed for young riders committed to advancing their mountain biking capabilities, this 24-inch carbon hardtail frameset delivers race-proven engineering in a youth-specific platform. The fully internalized cable routing eliminates exposure to mud, water, and abrasion, preserving brake and shifter functionality through extended trail sessions without maintenance delays. High-modulus carbon fiber construction employs directional lamination to achieve exceptional lateral stiffness for precise steering input while preserving vertical compliance that enhances traction and shock absorption on technical terrain. The lightweight carbon rigid fork with 160mm disc brake compatibility completes a cohesive system engineered for confident progression through challenging descents and technical trail sections.
