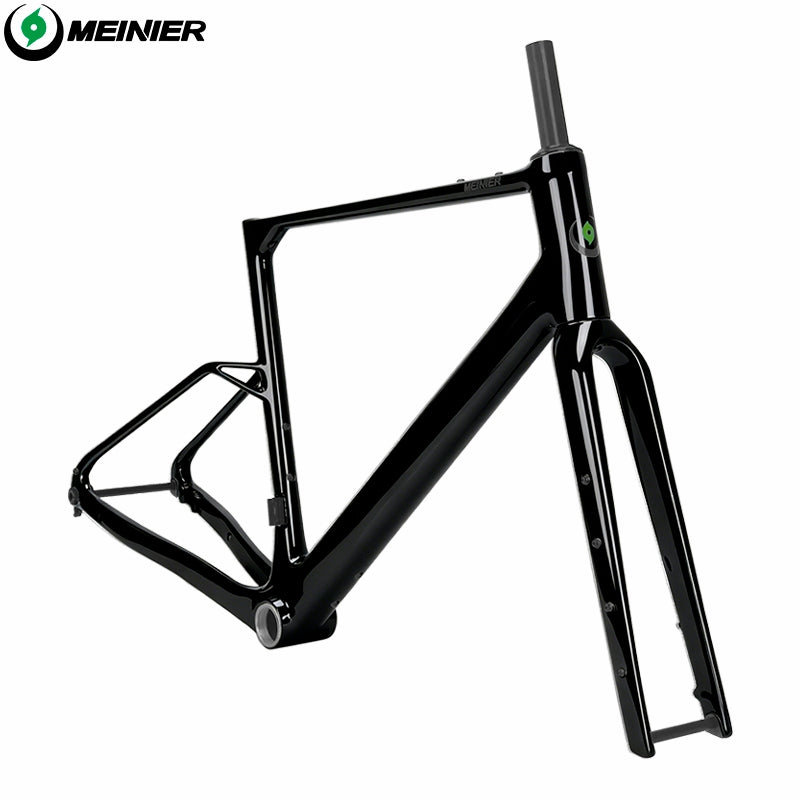

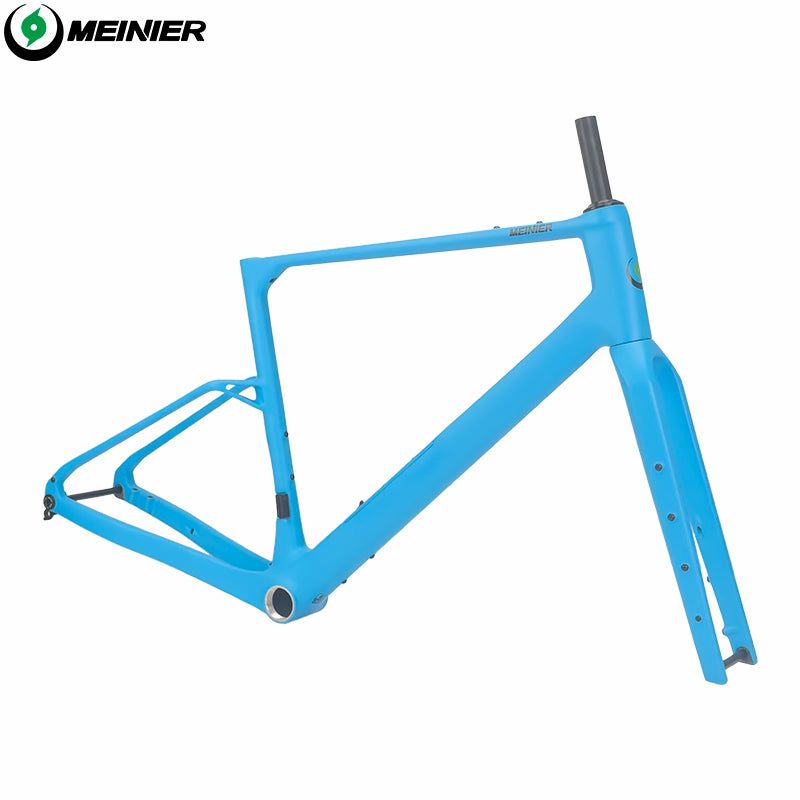

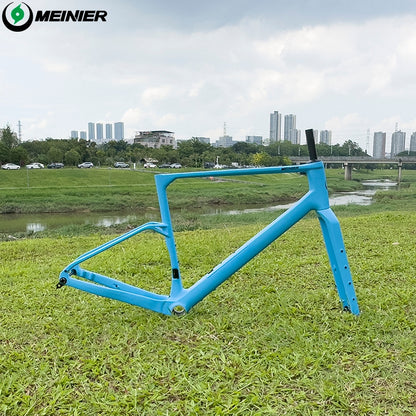

Frame Introduction

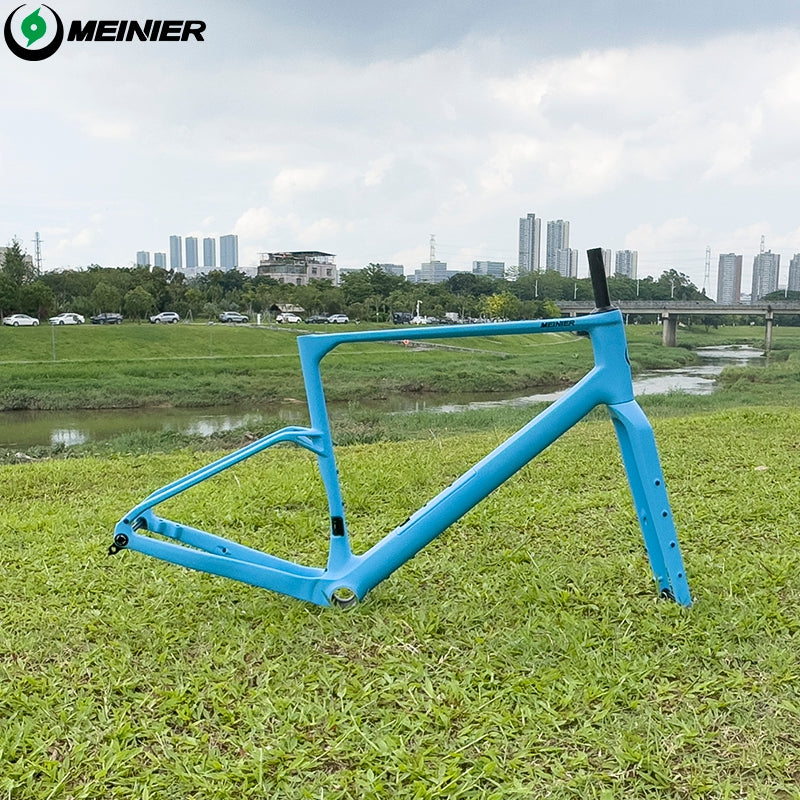

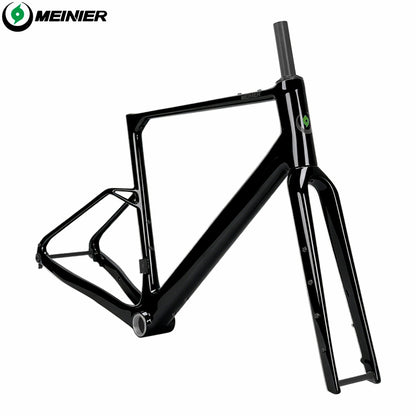

This is a high-performance gravel carbon frame designed specifically for adventure. It supports tires up to 700x50C wide, easily handling challenging terrain and providing excellent shock absorption. The downtube integrates a built-in toolbox with a full carbon fiber cover, balancing lightweight construction with convenient storage. Furthermore, it utilizes modern specifications such as a T47 bottom bracket, UDH universal dropout, and front and rear thru-axles, and supports full internal cable routing, making it an all-around frame that combines comfort, practicality, and high performance.

Frameset Specifications

Note: Customers placing orders through self-service should specify whether you need our logo in the order notes. Customized own logos require an additional fee, please contact customer service for details.

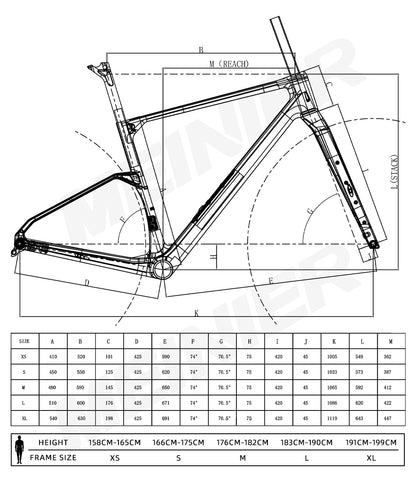

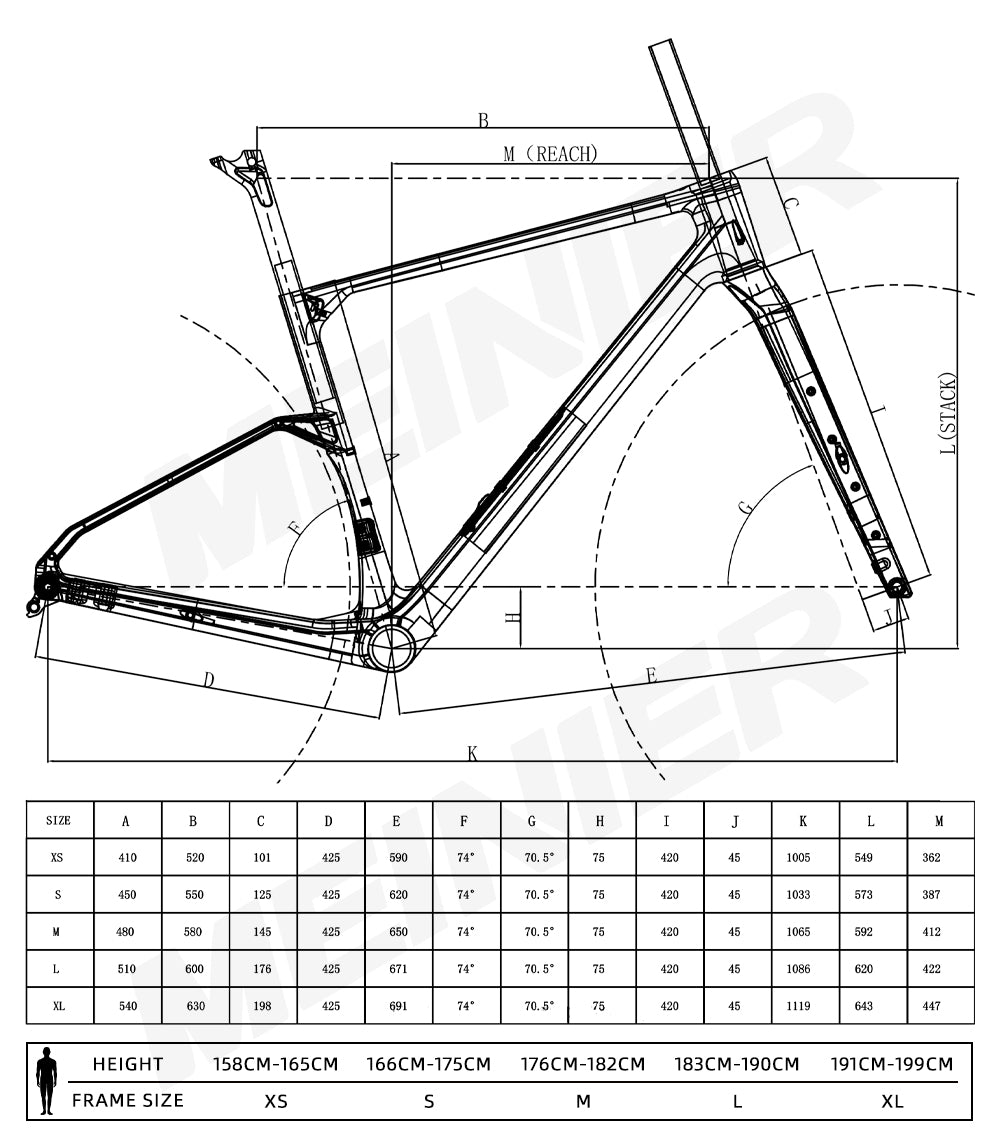

Frame Geometry

Frame Features

Internal Cable Routing:

The gravel bike frameset features fully internal cable routing, effectively protecting brake and shifter cables from environmental and mechanical damage, thus enhancing durability and safety.

Aerodynamic optimization：

When riding, the airflow generated by the front wheel and the rider's legs converges at the junction of the three tubes (seat tube, rear seat stay, and seat tube). An eyelet allows airflow to pass smoothly through the openings, reducing air resistance at the rear. Aerodynamic efficiency is crucial for long-distance races on gravel roads or riding in strong winds, and the eyelet design effectively helps maintain high speeds.

Uncompromising Traction & Comfort:

Engineered for a 700x50c tire footprint, this cyclocross frame maximizes grip and stability. The wider profile not only reinforces lateral support through tight corners but also seamlessly dampens road chatter, ensuring a confident and composed riding experience.

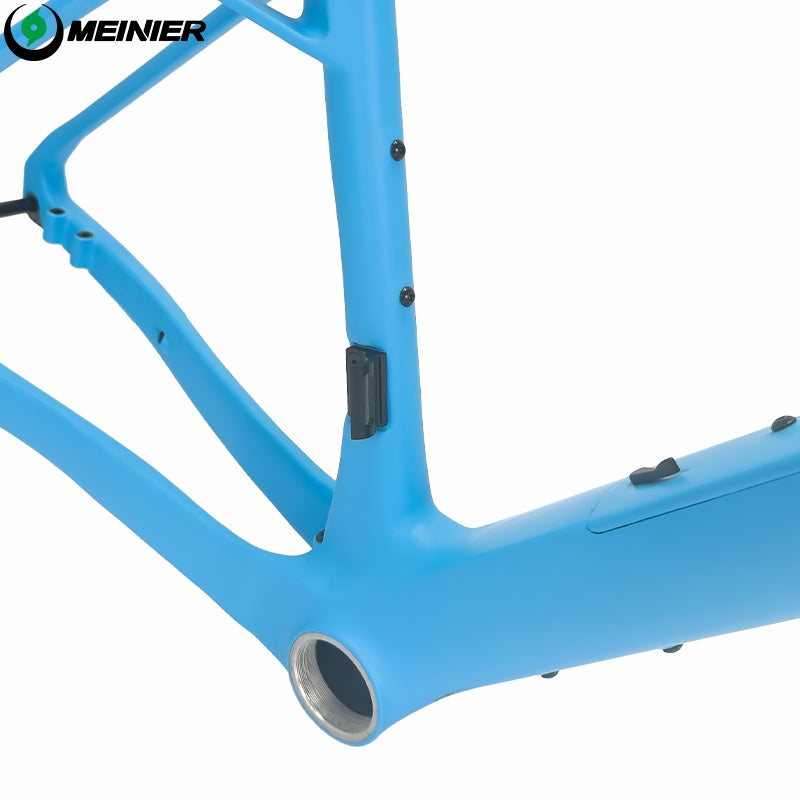

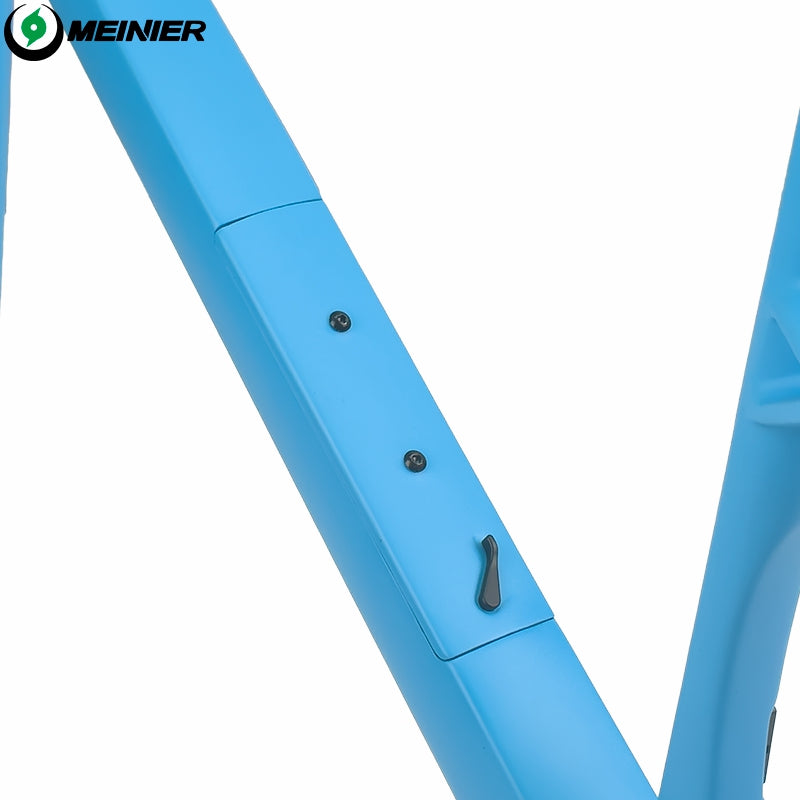

Carbon Fiber Tool Box:

This gravel bike frame seamlessly integrates a tool box, perfectly balancing speed with everyday practicality. Featuring a newly upgraded full carbon fiber lid, it not only shaves off precious grams but also adds a striking, high-end finish to your ride.



UDH Derailleur Hook:

This gravel bike frame features a UDH derailleur hook design, conforming to Universal Derailleur Hook (UDH) standards. This breaks through the limitations of dedicated drivetrains and is compatible with current and future drivetrain technologies.

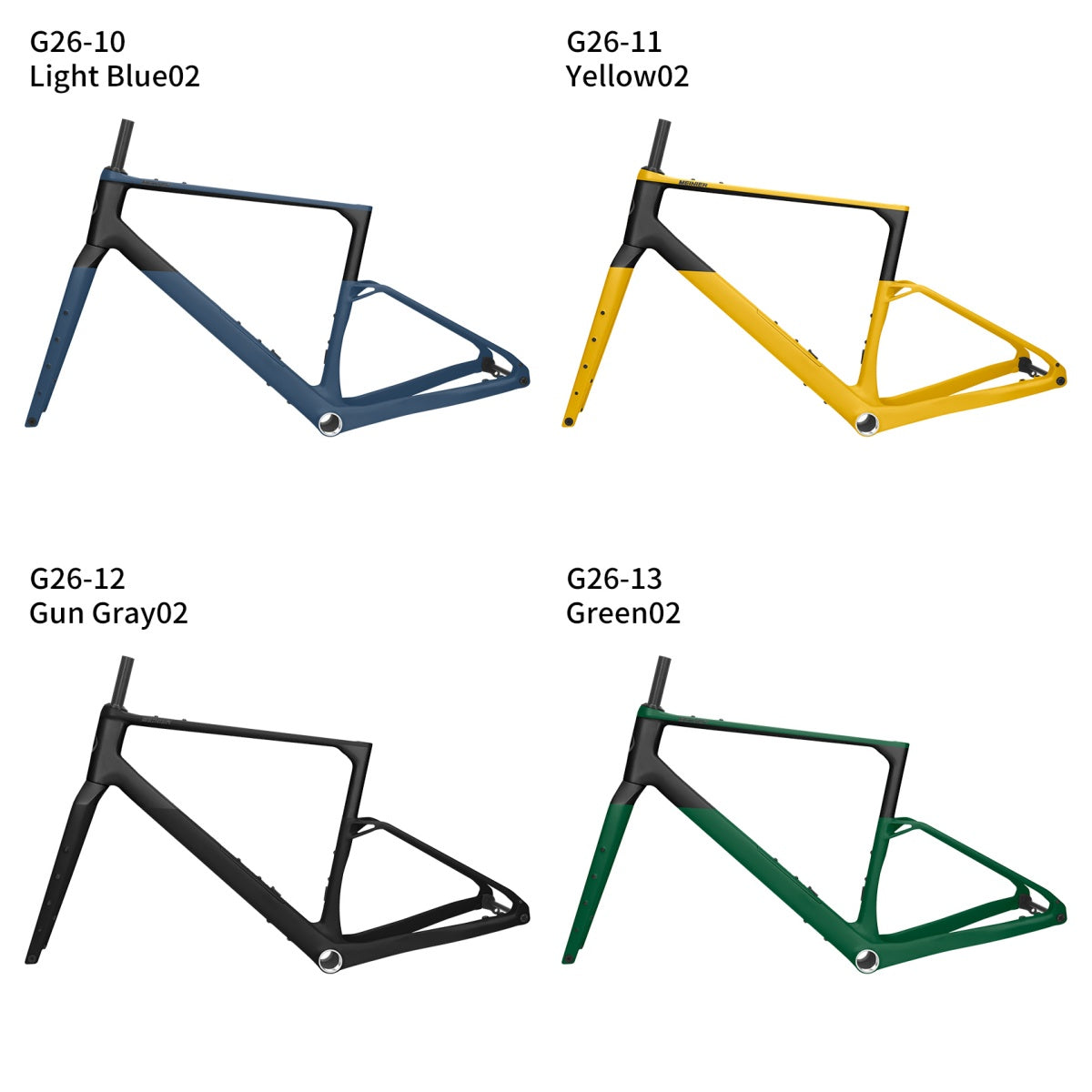

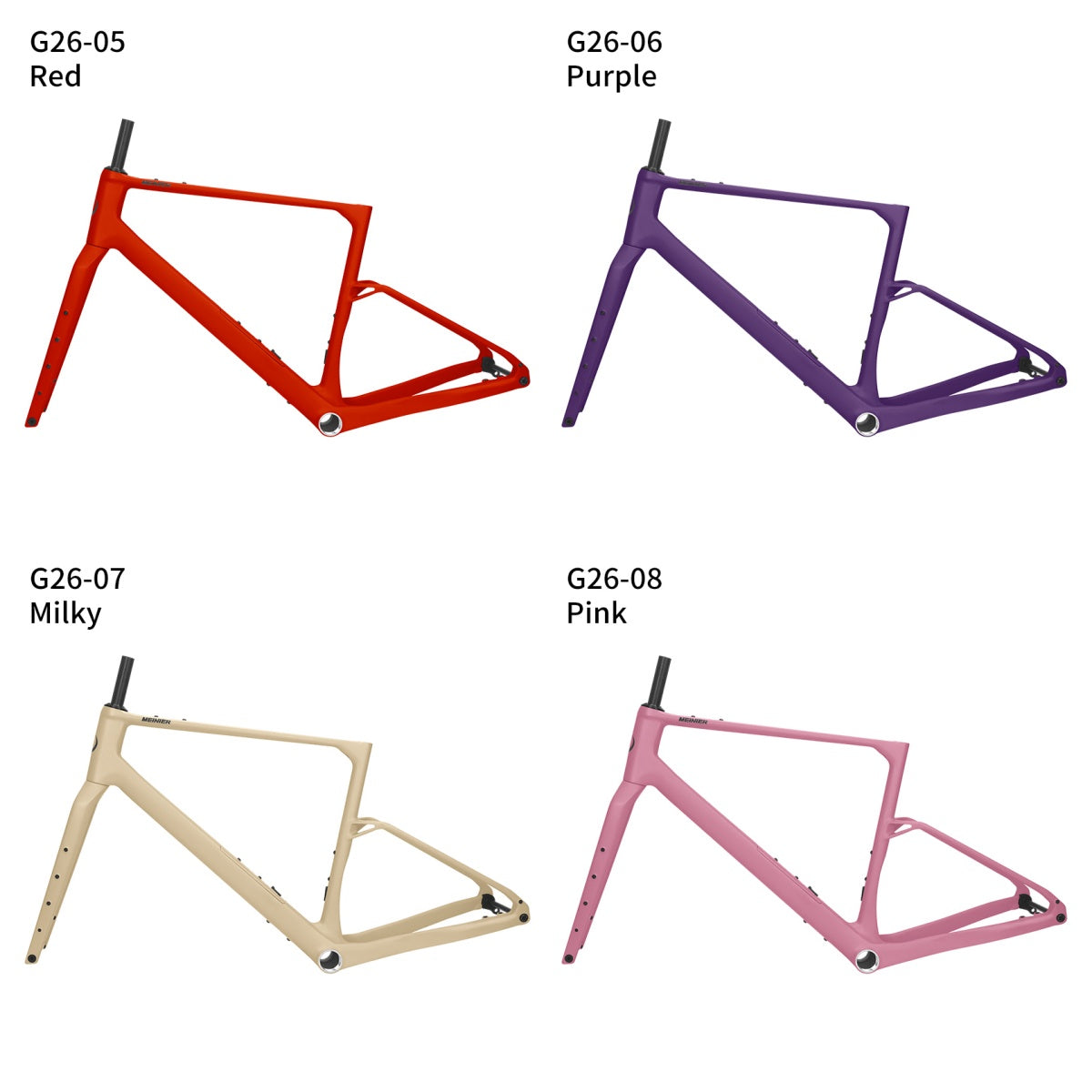

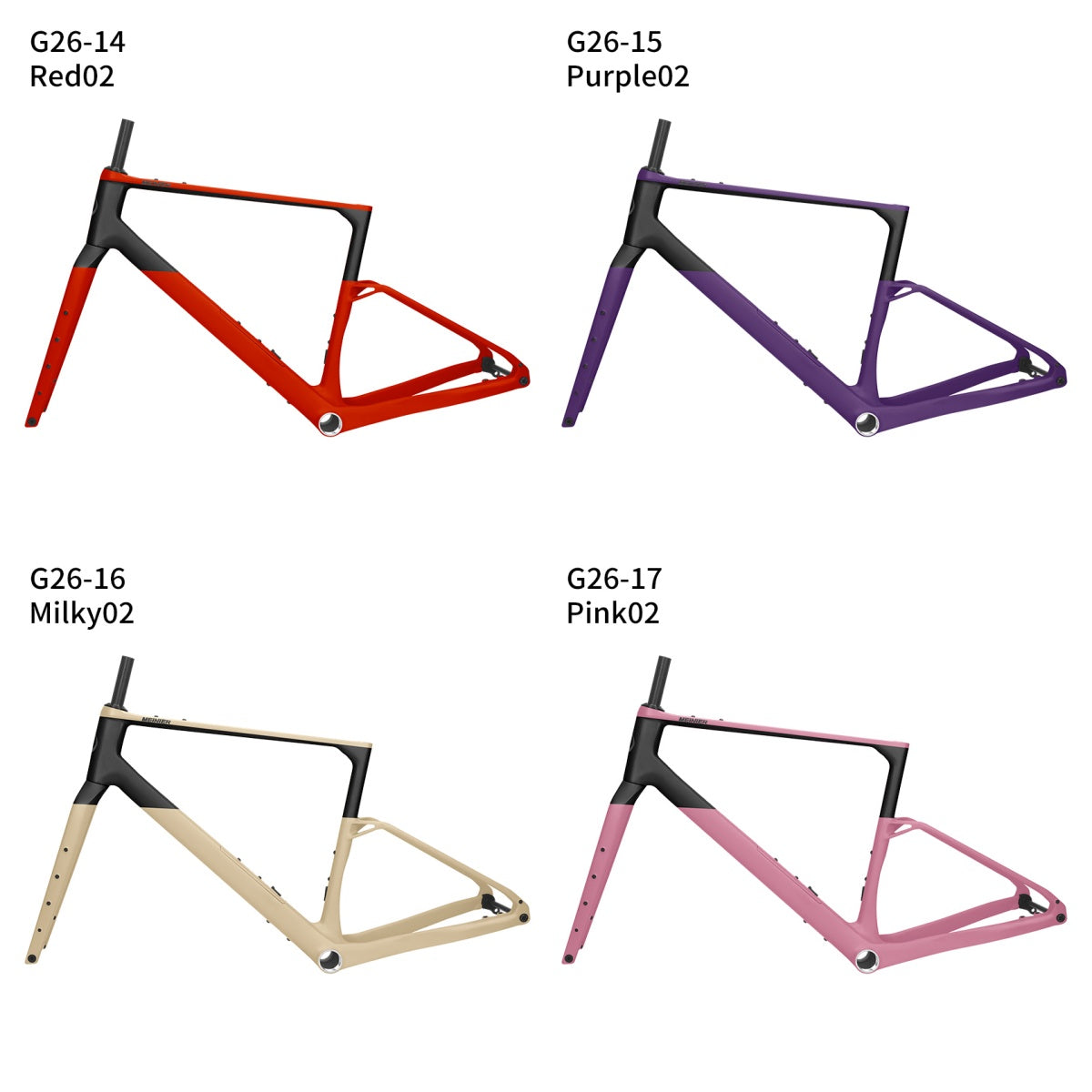

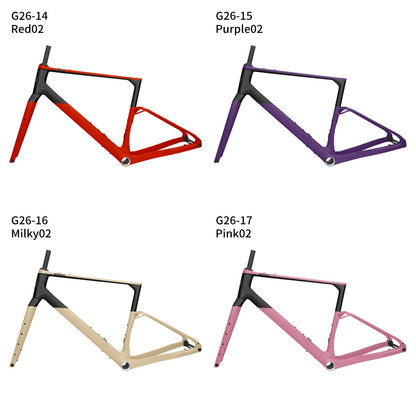

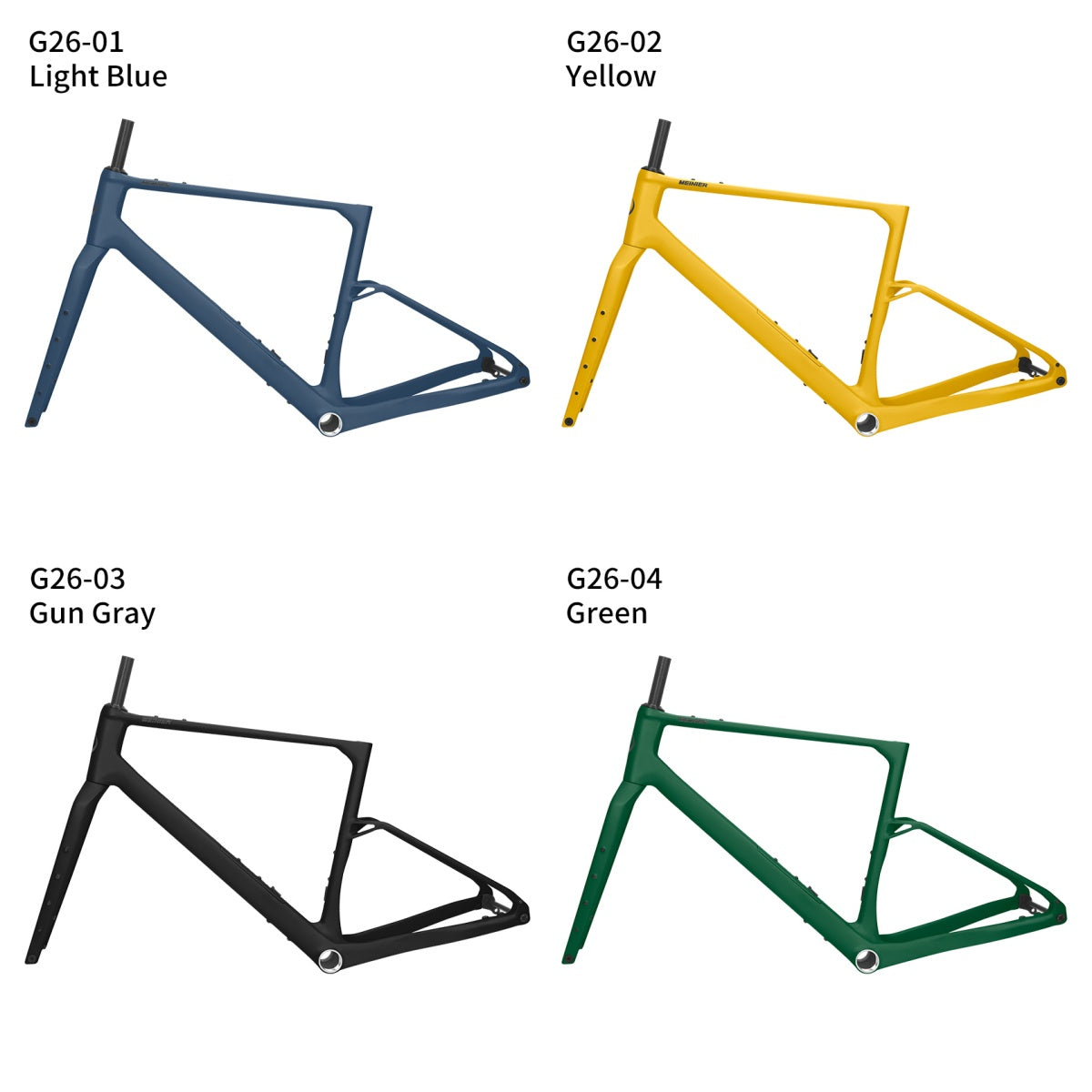

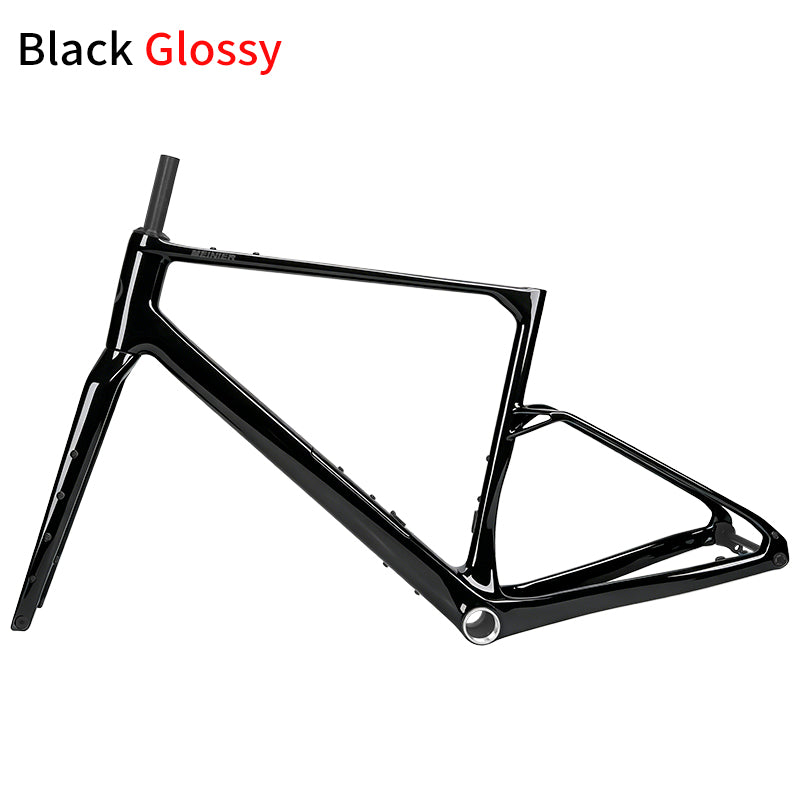

Custom Painting Services:

We are carbon fiber factory in China.we have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out.
You can contact us and we can customize the color and logo for you.

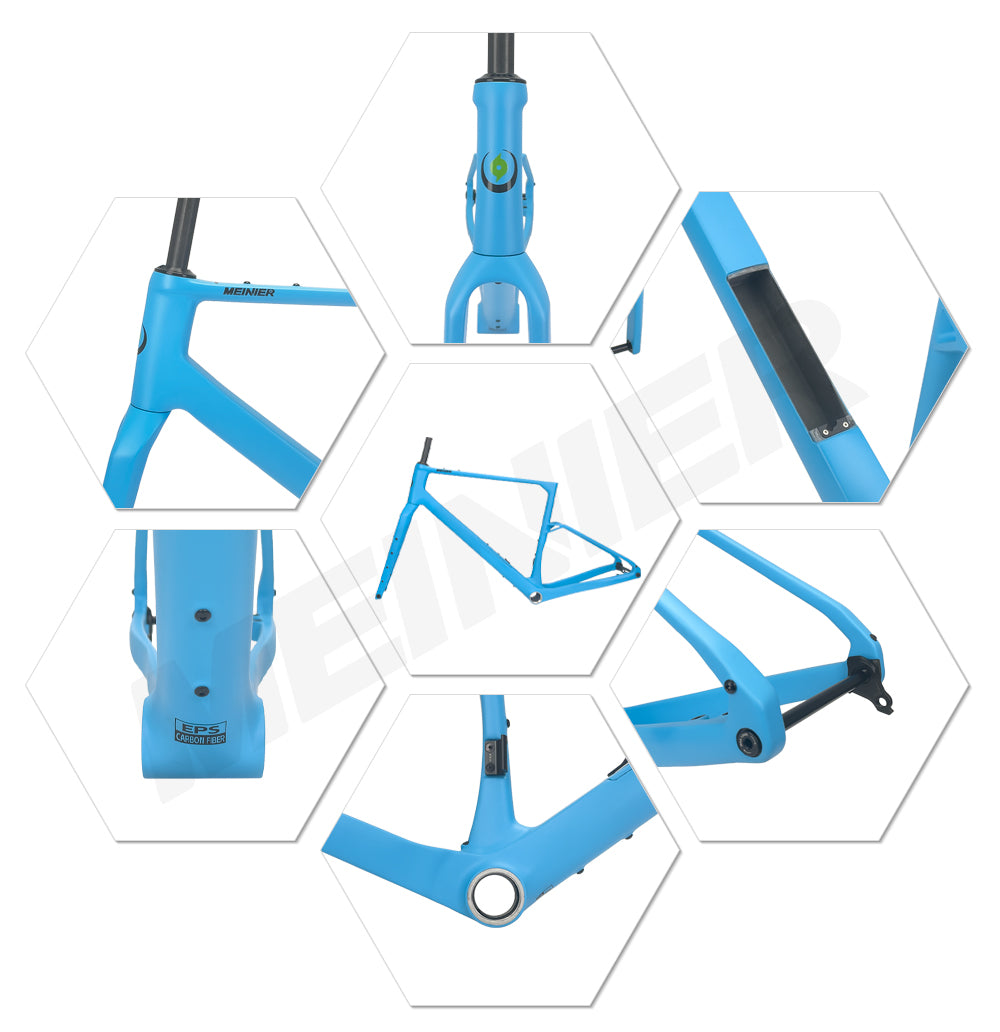

SHOW DETAILS

This gravel frame not only balances speed and comfort in its geometry but also adheres to top industry standards in its detailed configurations, making it an ideal choice for long-distance endurance racing, gravel road adventures, and daily commuting.



Regarding the logo: The MEINIER logo is provided free of charge. You can choose not to include the MEINIER logo (please specify in the order remarks).For custom logos,please contact customer service. Original files are required for custom logos. (Prices will vary depending on the logo style and quantity.)
