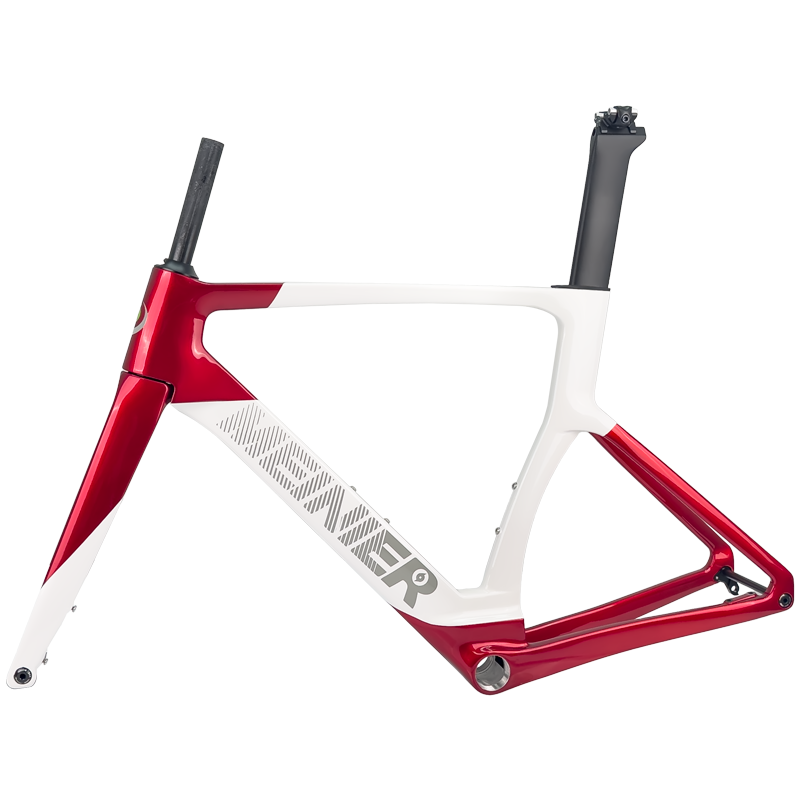

Frameset Introduction
This high-performance carbon road frame represents the pinnacle of racing technology. Precision-engineered from advanced carbon composite materials, it delivers exceptional rigidity and minimal weight for explosive acceleration and sustained speed. The 700C wheelset compatibility with 32C tire capacity provides tactical flexibility across varying race conditions and terrain demands. Integrated disc brake mounts offer superior modulation and stopping power critical for technical descents and competitive pack riding. The frame geometry prioritizes aerodynamic efficiency and responsive handling, translating every watt into forward progress. Purpose-built for elite cyclists pursuing competitive excellence and demanding uncompromising performance standards.
About Carbon Road Disc Frameset
Type：Carbon road disc Frameset
Size：XS/S/M/L/XL/XXL
Fit for Tire：700C,Max 32C Tire
Brake：Flat-Mount Disc Brake(140mm)
Bottom Bracket：T47(86mm)
Fit for Wheel Hub：Fork(100x12mm),Frame(142x12mm)
Fit for Headset：Top 1-1/2(52mm),Down 1-1/2(52mm)
Frame Specification
| Type | Carbon Road Disc Frameset |
| Material | Carbon Fiber |
| Model | MEINIER-DS-118 |
| Size | XS/S/M/L/XL/XXL |
| Fit for Tire | 700C,Max 32C Tire |
| Brake | Flat-Mount Disc Brake(140mm) |
| Bottom Bracket | T47(86mm) |
| Fit for Wheel Hub | Fork(100x12mm),Frame(142x12mm) |
| Fit for Headset | Top 1-1/2(52mm),Down 1-1/2(52mm) |
| Cable Routing | Internal Cable Routing |

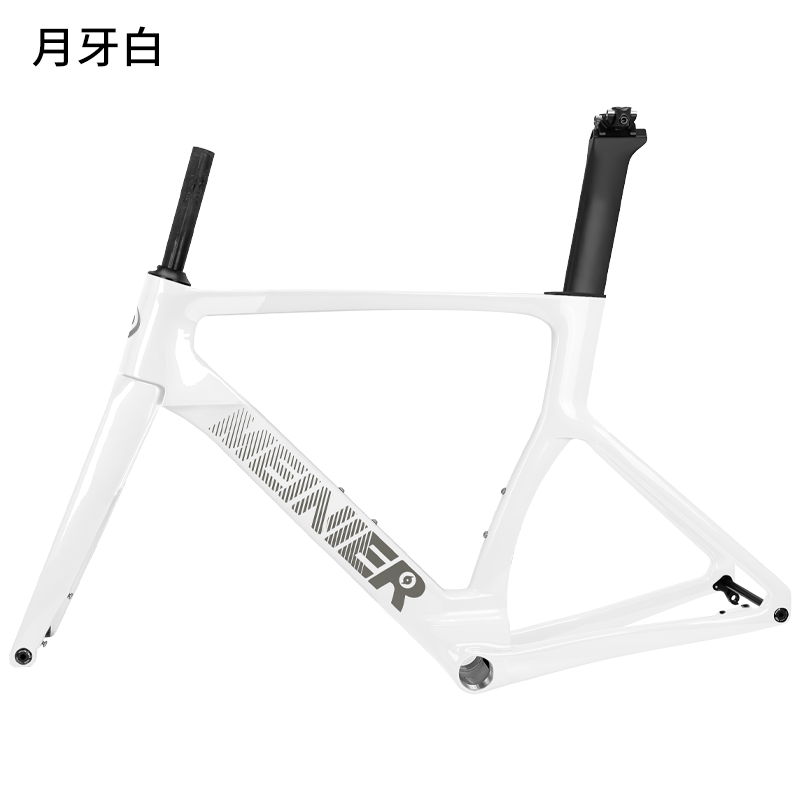

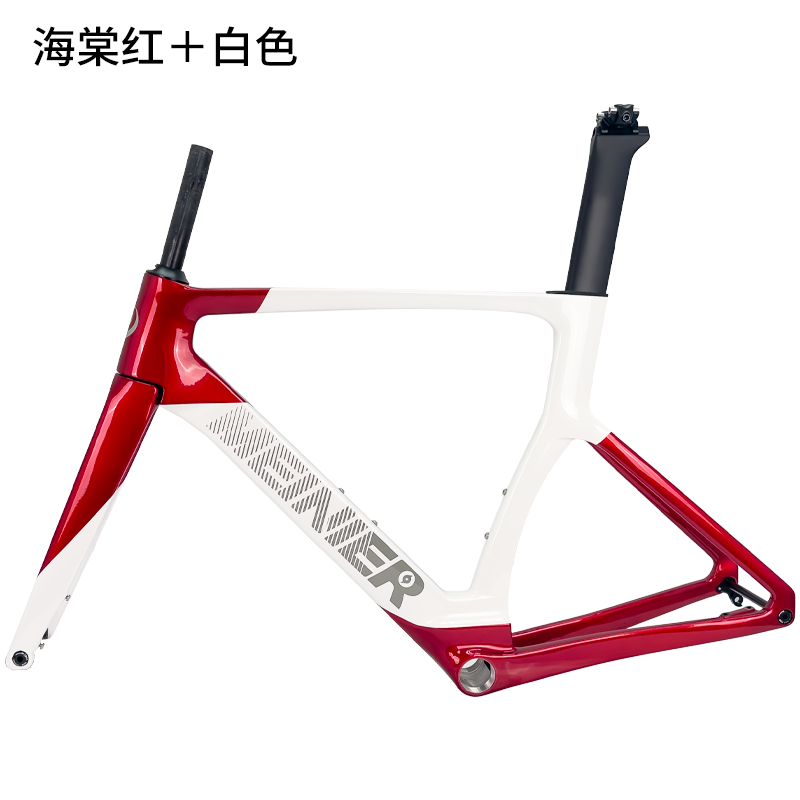

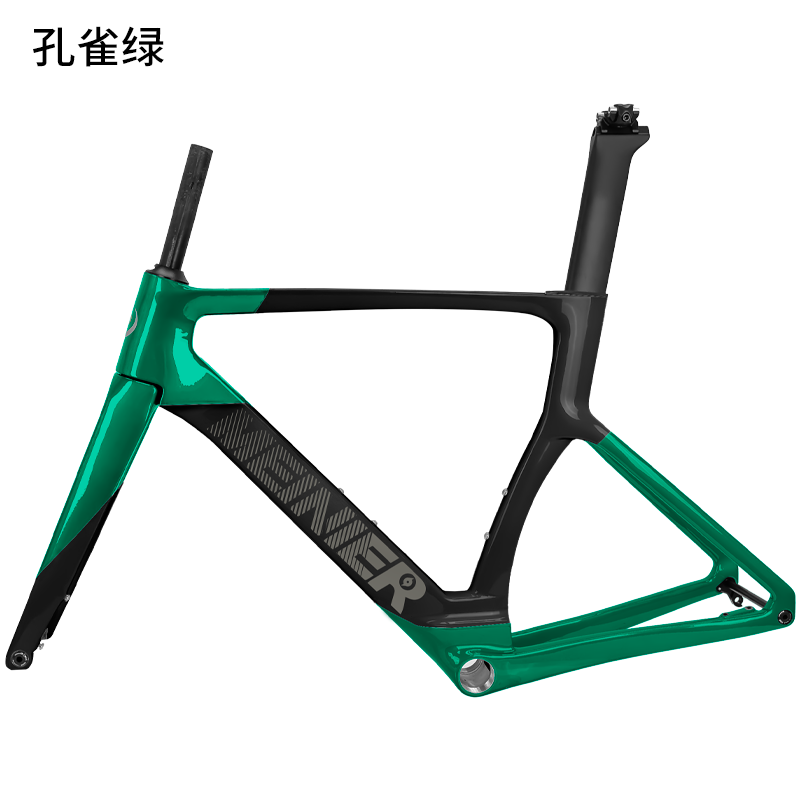

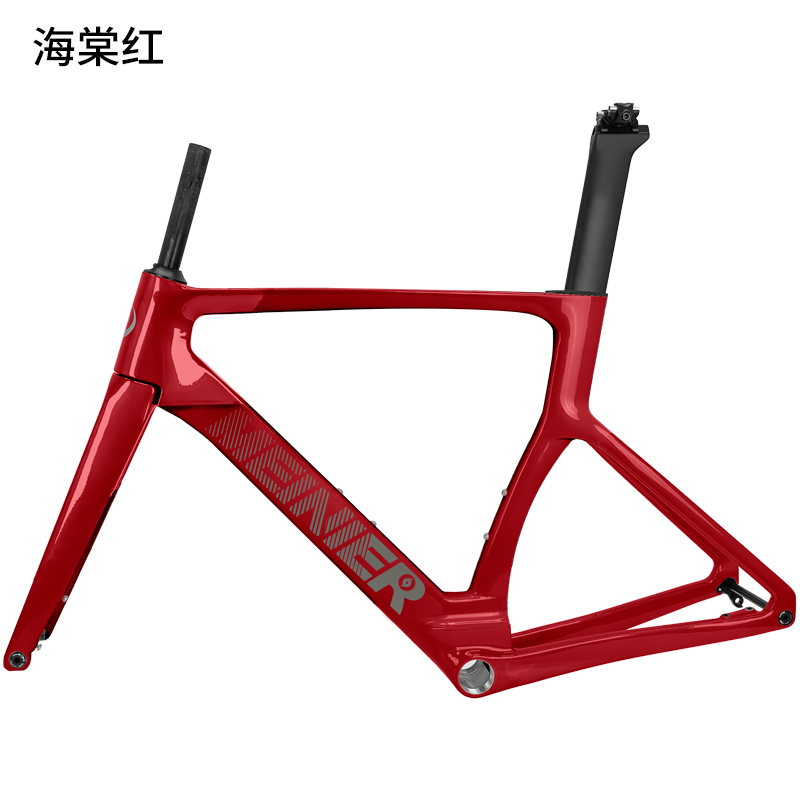

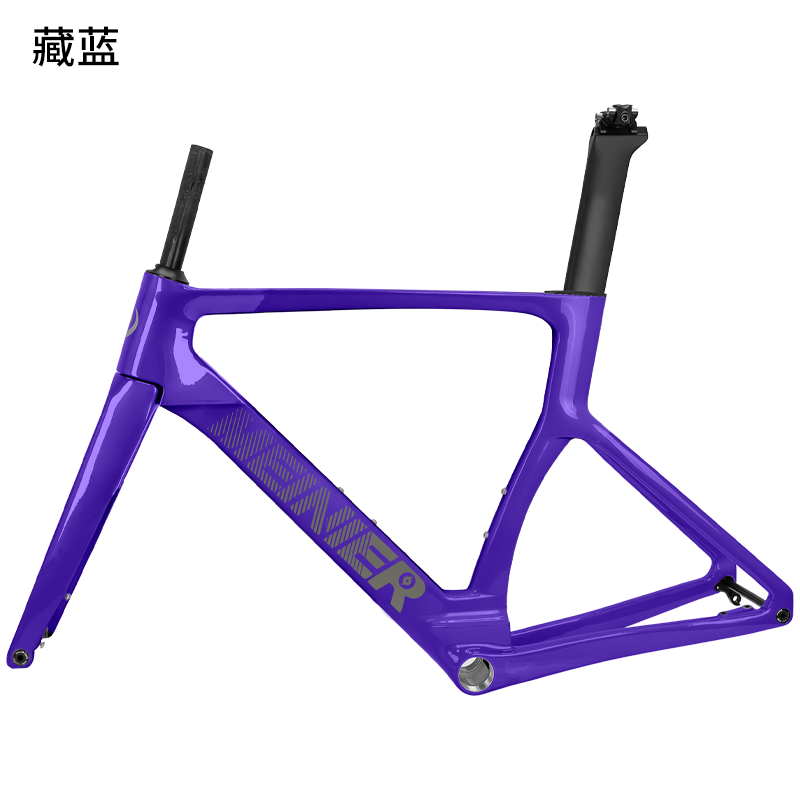

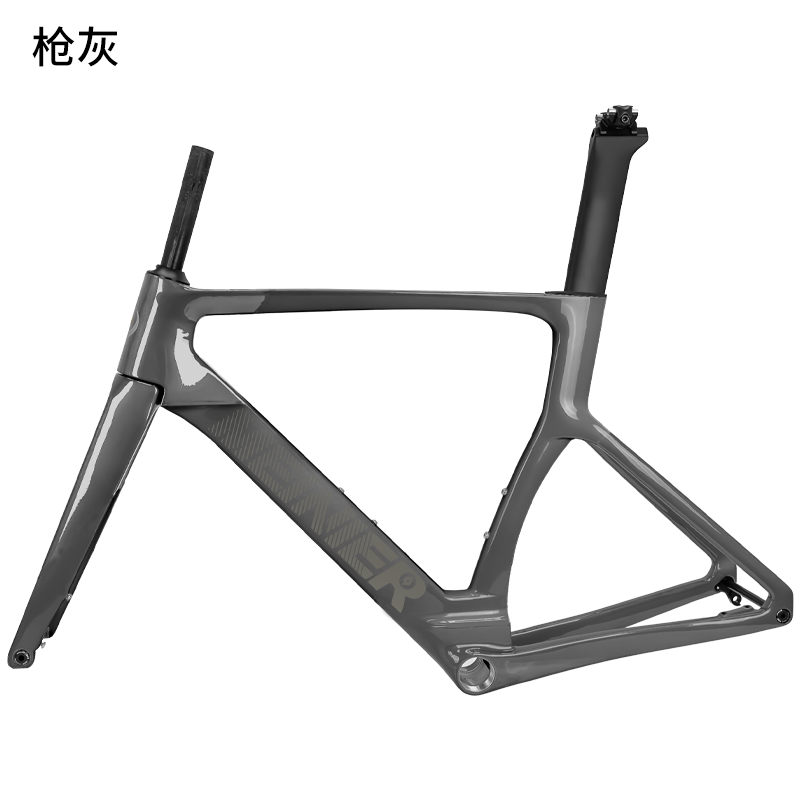

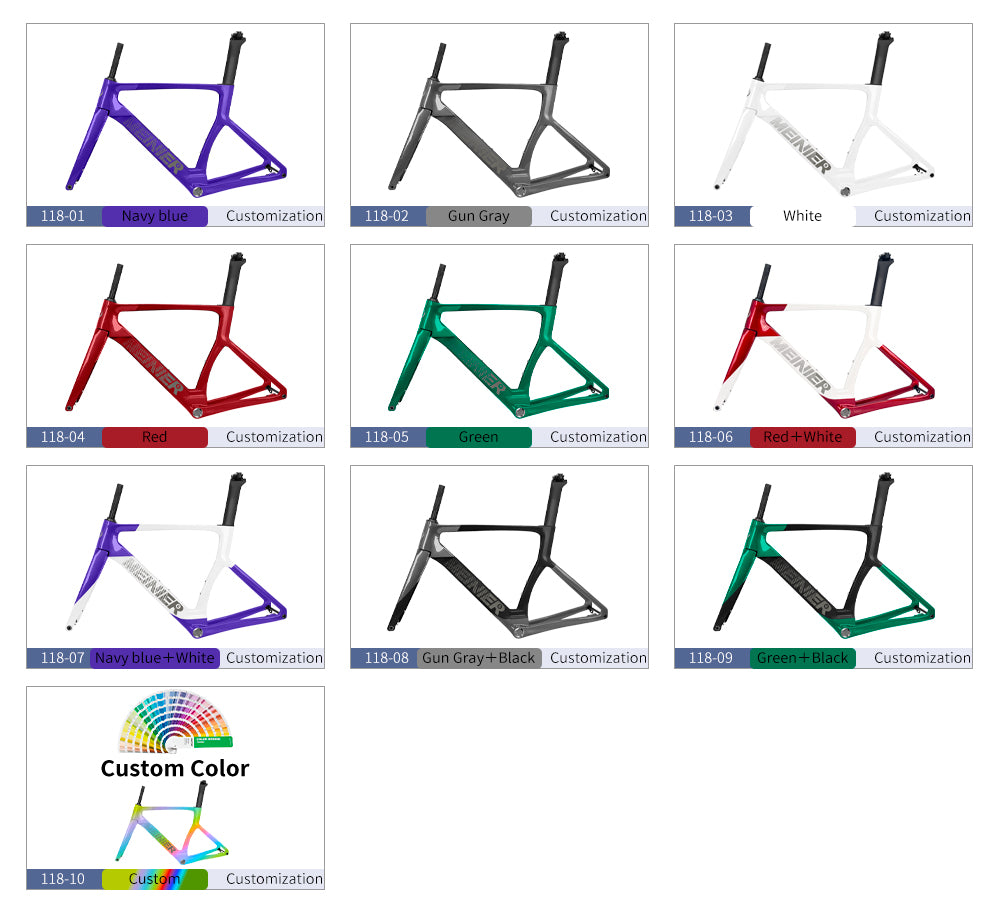

| Color | Can customized colors |
| Logo | Provide logo customization service |
| Product Includes | Frame+Fork+Seatpost+Headset+Thru-axle |

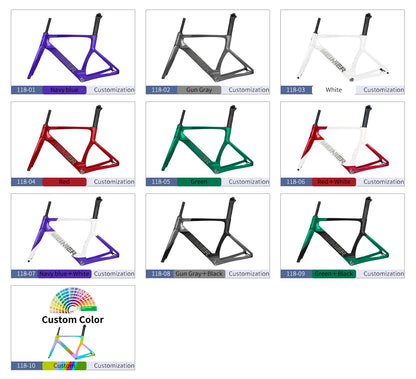

Custom Painting Services:
We are carbon fiber factory in China.we have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out.
You can contact us and we can customize the color and logo for you.

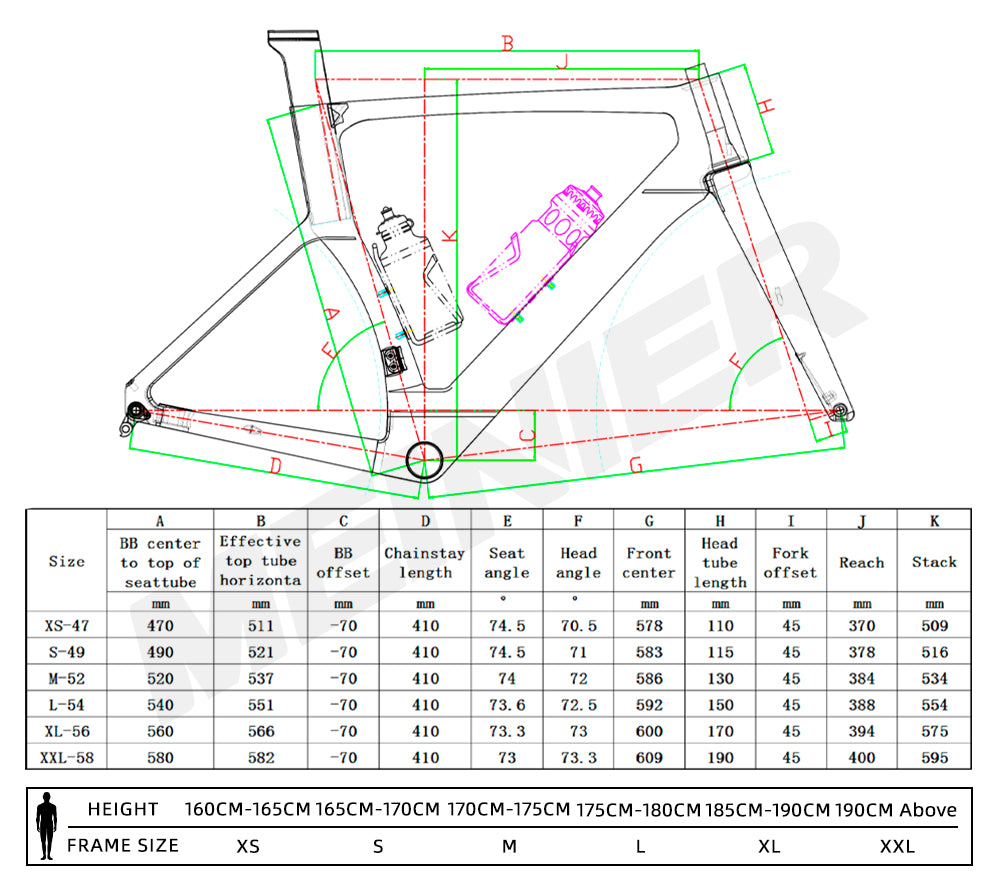

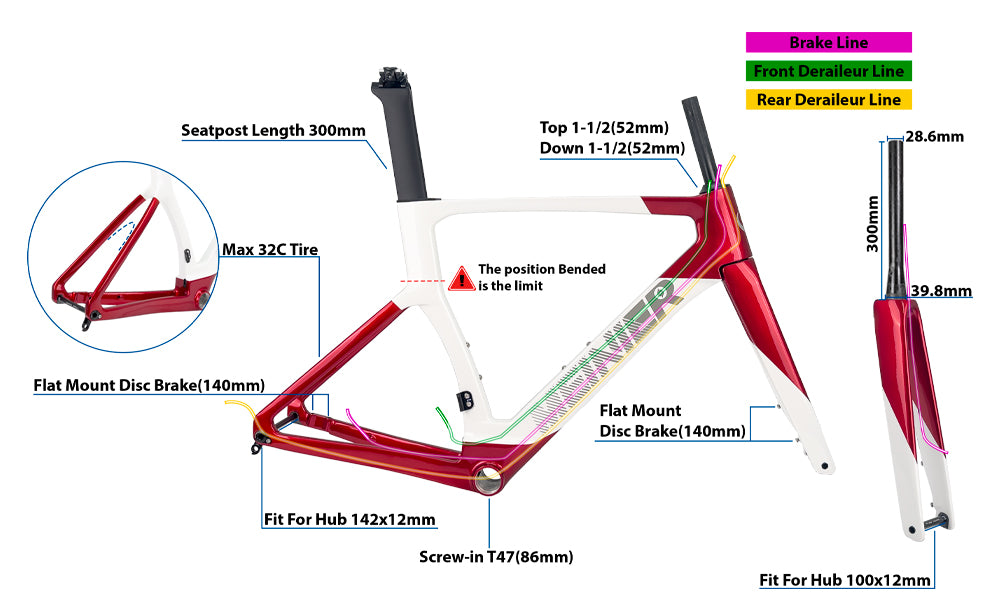

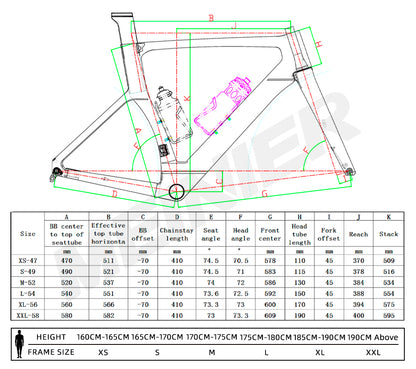

Carbon Frameset DS-118 Geometry
This model cabon road bike frame the tubing design of a wind-breaking frame tends to be flat, even teardrop-shaped, to allow air to flow more smoothly over the frame and reduce unnecessary air resistance
This frameset road bike has been aerodynamically optimized, including the front fork, handlebars, seat tube, and other components. Together, they enhance overall aerodynamic performance. With a T47 bottom bracket, flat-mount disc brake, and a dedicated carbon seat post, 52 to 52 headset, and 700c Max 32C tire 100x12mm/142x12mm wheels hub,this racing frame,road bike disc frameset is more stable, thus improving riding speed and efficiency.

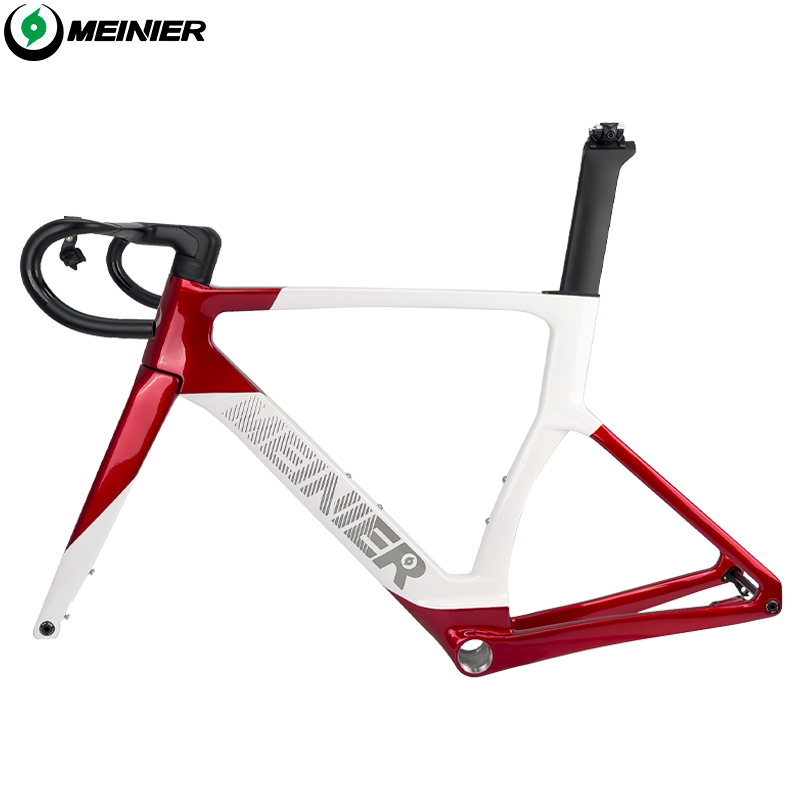

This carbon road bike frame features drop-down handlebars, gripping the handlebars lowers the rider's center of gravity, reducing their frontal area, thereby reducing wind resistance and increasing speed, making it ideal for speed-conscious road riding.
This road bike frame drop handlebar design is ideal for high-speed riding and racing on flat roads, helping riders achieve a balance between speed and efficiency.
Frame Features
Extremely lightweight and highly rigid, it effectively absorbs road vibrations, providing excellent responsiveness and riding comfort.
Unlike mountain bikes, which require reinforcement, road bicycle frame is used on smooth roads and do not require excessive reinforcement, so they are generally lighter.This model road carbon frame high rigidity is a key feature to ensure efficient power transmission.
This carbon fiber road bike frame main features are lightweight, high rigidity and aerodynamic design, aiming to improve high-speed riding efficiency and comfort. Modern road bike generally use large 700C wheels to achieve better rolling efficiency and make it easier to maintain speed on the road.
